Bracket Kit, Firewall Mount - 250-13167


Call (805) 388-1188
Bracket Kit, Firewall Mount
Prod #: 250-13167
Price: $193.43


Mounting Bracket

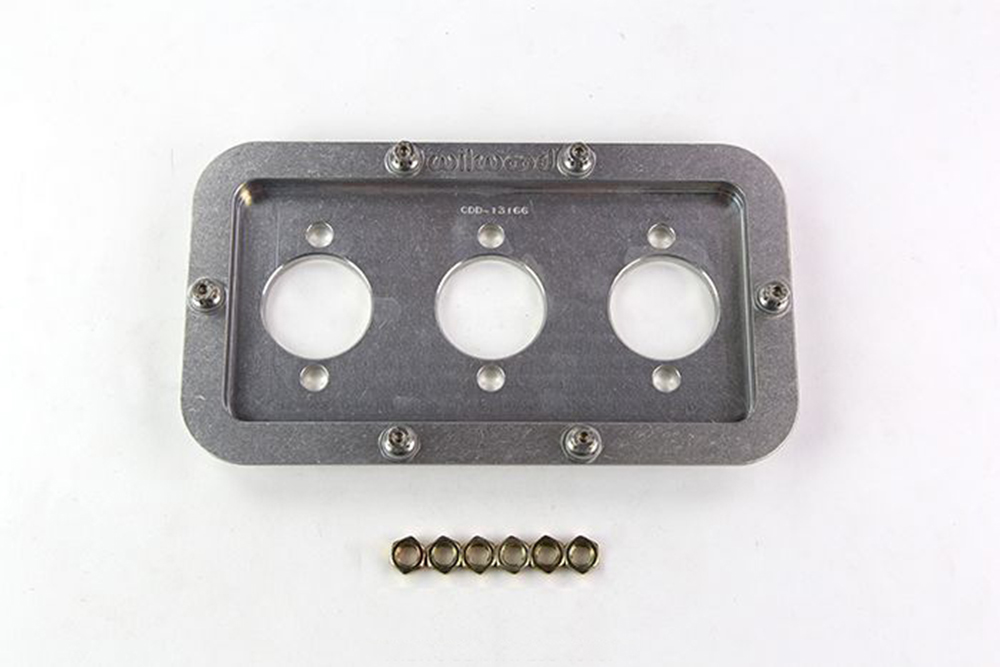

Wilwood's new billet aluminum Master Cylinder Firewall Mounting Kit, part number 250-13167. This mounting kit is specifically designed to work in conjunction with Wilwood’s Forward Mount Brake and Clutch Pedal Assembly and Flange Mounted Compact Remote Master Cylinders.The kit allows precision mounting of the pedal and master cylinders to the firewall, and leaves the engine compartment with a high-tech pro-finish look. The mounting plates recess the master cylinder mounting surface by .25”, which allows more clearance in the engine compartment. Both the engine compartment faceplate and interior side mounting plate are media burnished billet aluminum. The kit is designed to accept a firewall material thickness range of .040” - .080”, and requires a minimum flat area the size of the 4” x 8” faceplate. Also provided is all mounting hardware, including attractive, corrosion resistant stainless steel 12 point fasteners, and detailed installation instructions.



Bracket Kit, Firewall Mount Description
Type Bracket Kit, Firewall Mount
Material Aluminum
Finish
Weight (oz) 1.478
Packet Qty Each
Mount Info
Mount Side N-A
Mount Type N-A
UPC Number
UPC 889545064094
Notes
Desc 1 M/C MT KIT,FIREWALL,ASSEMBLY
Desc 2
Cautionary Info

Product Data Sheets
Data Sheet

Click To View

Bracket Kit, Firewall Mount Dimensions

Dimensions
Dim Mount Center N-A
Thread Size N-A
Stud No N-A
Dim Rotor Dia (in) N-A
Additional Notes
