Bracket Kit, Caliper Mounting (Racing) - 250-13628


Call (805) 388-1188
Bracket Kit, Caliper Mounting (Racing)
Prod #: 250-13628
Price: $79.43

Wilwood Bracket Kit, Caliper Mounting (Racing) Wilwood Bracket Kit, Caliper Mounting (Racing) Zoom Image

Bracket Kit, Caliper Mount

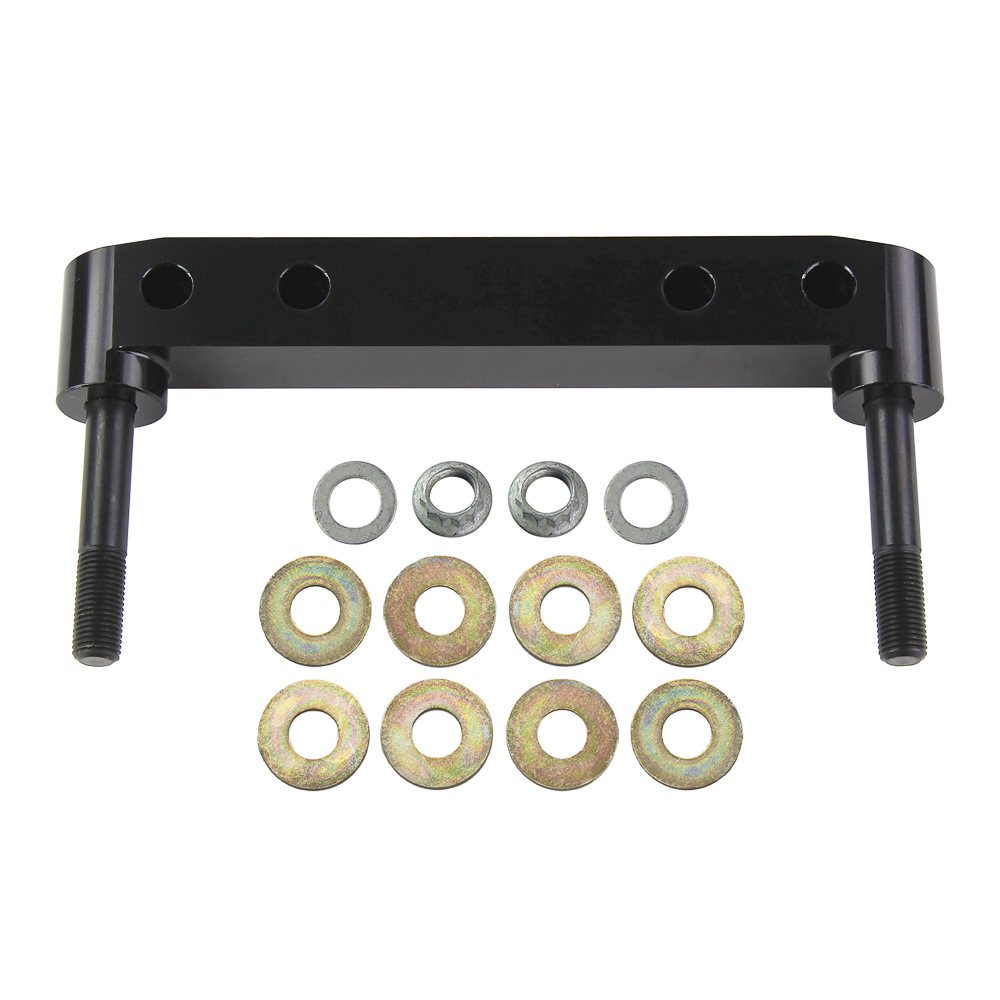

Wilwood’s Aero4 / Aero6 bracket mounts the Aero series of radial mount calipers to a 6.00” center to center lug mount. Brackets include studs, shim and the mounting hardware.



Bracket Kit, Caliper Mounting (Racing) Description
Type Bracket Kit, Caliper Mounting (Racing)
Material Aluminum
Finish
Weight (oz) 1.150
Packet Qty Each
Mount Info
Mount Side L/H or R/H
Mount Type Radial
UPC Number
UPC 889545064308
Notes
Desc 1 BRACKET KIT,CALIPER,AERO4/6,7.087
Desc 2 SPACING,6.00 MT
Cautionary Info

Product Data Sheets
Data Sheet

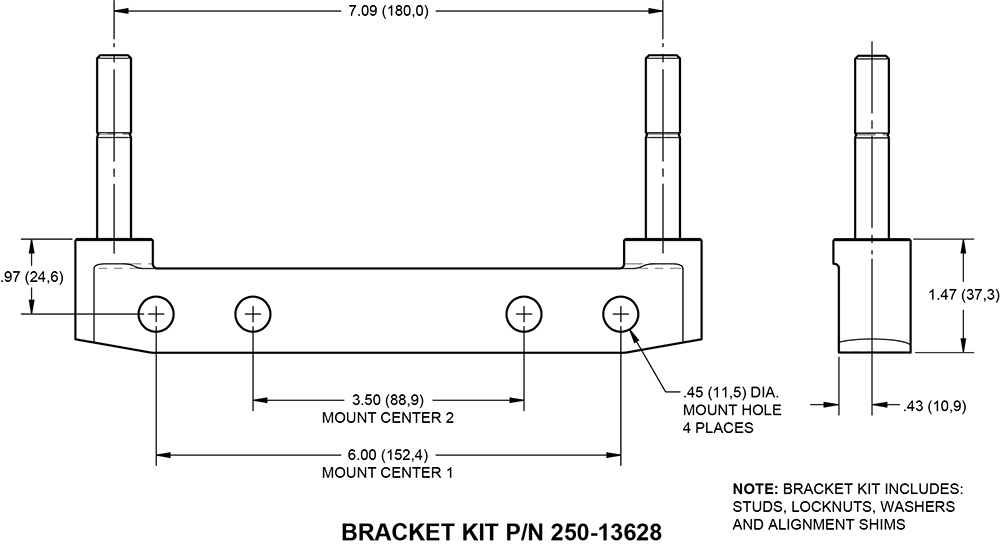

Bracket Kit, Caliper Mounting (Racing) Dimensions

 Drawing Drawing
Dimensions
Dim Mount Center 7.09
Thread Size 7/16-20
Stud No 230-9080
Dim Rotor Dia (in) N-A
Additional Notes


All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
