Clutch Pedal - 330-13370

Call (805) 388-1188
Clutch Pedal
Prod #: 330-13370
Price: $52.43


Brake Pedal Replacement Parts

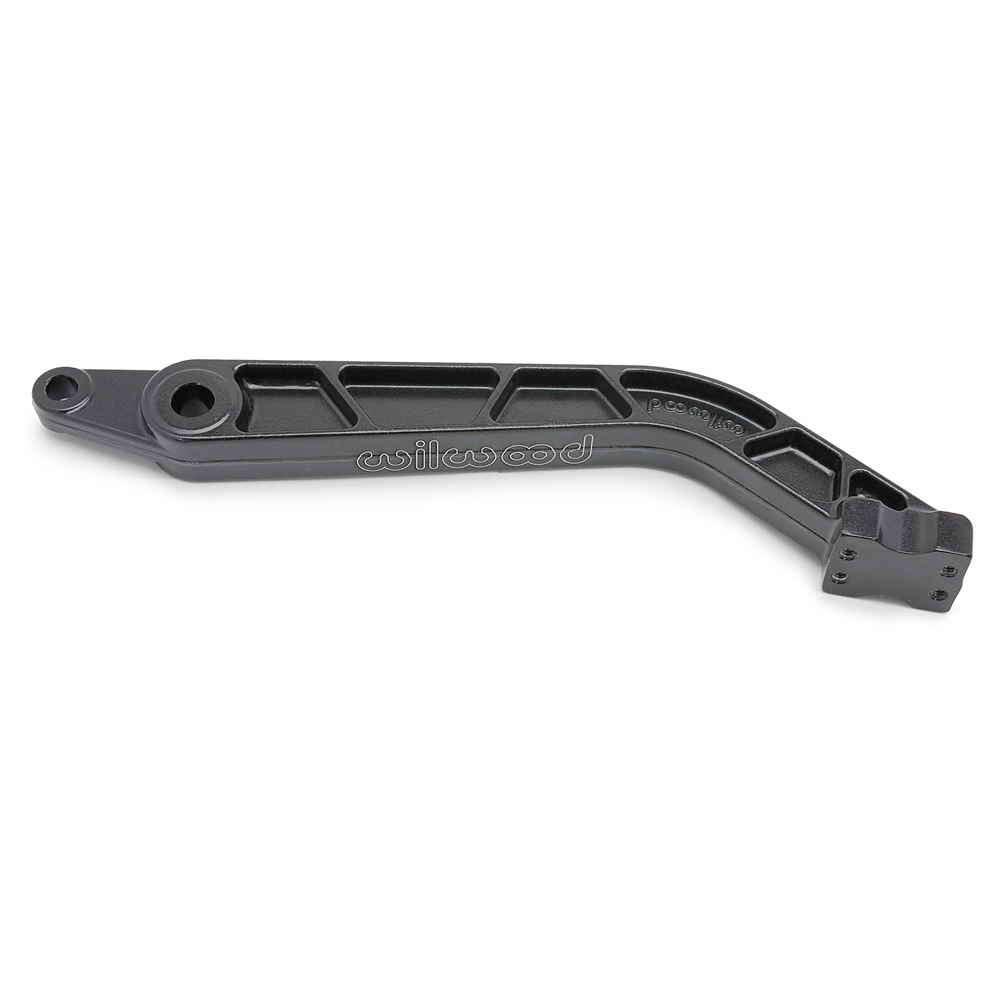

Clutch Pedal Lever for Wilwood’s 340-13835 / 340-13836 / 340-15073 / 340-15073, Reverse Mount Brake & Clutch Pedal Assemblies, with 5.00 to 1 ratio. Engineered from high strength aluminum alloy forging and with a black e-coat finish for corrosion resistance. Does not contain pedal pad or hardware.



Clutch Pedal Description
Type Clutch Pedal
Material Aluminum
Finish
Weight (oz)
Thread Size
Thread Size
Pin Size
Cap Thread
UPC Number
UPC 889545072495
Notes
Desc 1 PEDAL,REVERSE MT,CLUTCH,5:1,MACHINE
Desc 2
Cautionary Info
Cautionary Info
Product Data Sheets
Data Sheet

Clutch Pedal Dimensions

Pedal Set
Pedal Type Clutch Pedal
Pedal Direction Reverse
Pedal Ratio 5.00 to 1
Pedal Length (in) 10.77
Pivot Length (in) 1.68
P Pin Dia 0.505
C Pin Dia
B Pin Dia 0.381
Parking Brake Cable
Length (in)
Width (in)
Slot Width (in)
B Pin Dia

Additional Notes
