Big Brake Dynamic Lug Drive - Short Offset
Prod #: 170-14992
Price: $239.93
Big Brake Dynamic Lug Drive - Short Offset 170-14992
Wilwood Big Brake Dynamic Lug Drive - Short Offset Hat Wilwood Big Brake Dynamic Lug Drive - Short Offset Hat Zoom Image

Hat Dimensions
Mount Hole Type Lug
Rotor Bolt Circle (in) 12Lug-8.80
Hat Offset (in) 0.290
Center Reg. (in) 2.78
Hat Type
Material Aluminum
Mount Style Dynamic Lug Mount
Finish Type III Anodize
Weight (lbs) 3.250
Bolt Circle Dimensions
Hat Bolt Circle 1 5 X 4.50
Hat Bolt Circle 2 5 X 4.75
Hat Bolt Circle 3
UPC Number
UPC 889545086072
Application Info
Application Note 2005-13 Corvette
Hat Bolt Kit Part # 300-14913
Application Note
Application Note
Big Brake Dynamic Lug Drive - Short Offset - Product Description

Wilwood's new Big Brake Dynamic Lug Drive hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.


Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. A large, single snap-ring retains the rotor in the hat, making assembly and installation literally a snap. There is no longer any need to torque or safety wire rotor mounting bolts. The already lightweight stainless alloy discs are additionally drilled to remove all unnecessary rotating weight from the driveline.




Rotor Hat Dimensions

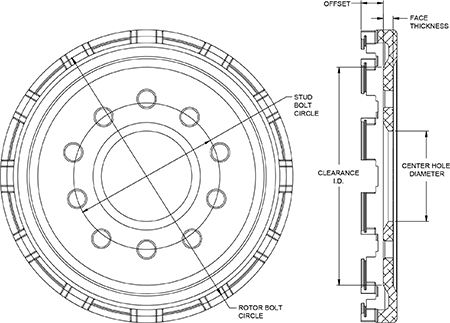

Big Brake Dynamic Lug Drive - Short Offset Hat Drawing Big Brake Dynamic Lug Drive - Short Offset Hat Drawing Zoom Image
Additional Hat Dimensions
Rotor Mount Hole Size (in) N/A
Shoe I.D. (in)
Clearance I.D. (in) 6.70
Face Thickness (in) 0.30
Hat Stud Diamenter - BC 1 (in) 0.520
Hat Stud Diamenter - BC 2 (in) 0.520
Hat Stud Diamenter - BC 3 (in)
Additional Notes
300-14913 Dynamic Lug Mount Clip & Snap Ring kit are required for rotor mounting.

Wilwood Compatible Rotors



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
