Big Brake Dynamic Lug Drive - Flared Bell
Prod #: 170-15420
Price: $277.12
Big Brake Dynamic Lug Drive - Flared Bell 170-15420
Wilwood Big Brake Dynamic Lug Drive - Flared Bell Hat Wilwood Big Brake Dynamic Lug Drive - Flared Bell Hat Zoom Image

Hat Dimensions
Mount Hole Type Lug
Rotor Bolt Circle (in) 12lug-7.77
Hat Offset (in) 0.920
Center Reg. (in) 2.66
Hat Type
Material Aluminum
Mount Style Dynamic Lug Mount
Finish Type III Anodize
Weight (lbs) 1.800
Bolt Circle Dimensions
Hat Bolt Circle 1 5 x 4.72
Hat Bolt Circle 2
Hat Bolt Circle 3
UPC Number
UPC 889545087505
Application Info
Application Note 2010-2018 Camaro Lug Mount
Hat Bolt Kit Part # 300-14912
Application Note
Application Note
Big Brake Dynamic Lug Drive - Flared Bell - Product Description

Big Brake Dynamic Lug Mount Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature dynamic lug mount rotor slots and a corresponding snap ring groove for use with lug mount rotors.

Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. A large, single snap-ring retains the rotor in the hat, making assembly and installation literally a snap. There is no longer any need to torque or safety wire rotor mounting bolts. The already lightweight stainless alloy discs are additionally drilled to remove all unnecessary rotating weight from the driveline.

Rotor Hat Dimensions

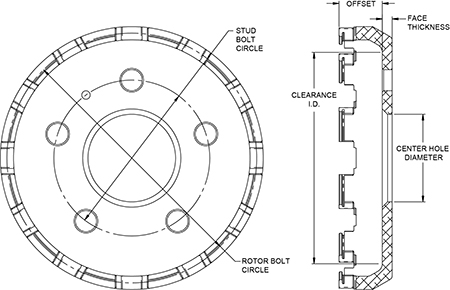

Big Brake Dynamic Lug Drive - Flared Bell Hat Drawing Big Brake Dynamic Lug Drive - Flared Bell Hat Drawing Zoom Image
Additional Hat Dimensions
Rotor Mount Hole Size (in) N/A
Shoe I.D. (in)
Clearance I.D. (in) 6.41
Face Thickness (in) 0.30
Hat Stud Diamenter - BC 1 (in) 0.640
Hat Stud Diamenter - BC 2 (in)
Hat Stud Diamenter - BC 3 (in)
Additional Notes
300-14912 Dynamic Lug Mount Clip & Snap Ring kit are required for rotor mounting.

Wilwood Compatible Rotors

Products commonly used with this item:

More Details

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
