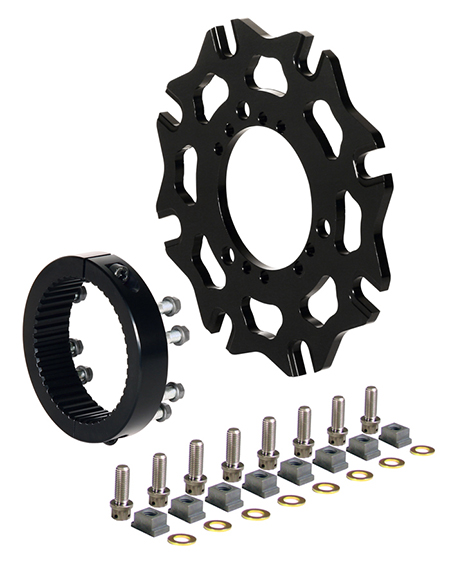

Sprint Inboard Hub Kit - Dynamic
Prod #: 270-10484
Price: $318.60


Sprint Inboard Hub Kit - Dynamic - Product Description

Wilwood's Sprint inboard hub & adapter kit provides a basis to bolt dynamic rotor rotor mounting of standard 8 x 7.00" bolt pattern rotors. Contains rotor adapter and dynamic rotor mounting bolt kit. Made from high strength aluminum. It provides a lightweight and strong solution for rotor mounting.


Material & Finish
Material Aluminum
Finish Black Anodize
Weight (lbs) 1.5
UPC Number
UPC 889545068283
Rotor Compatibility
Rotor Mount Bolt Circle (in) 8 x 3.35
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Adapter-Dynamic
Adapter Bolt Circle(s) 6-Bolt Type 6 x 5.50
8-Bolt Type 8 x 7.00
Hub Bolt Circles
Bolt Circle 1 (in) Splined
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in)
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Sprint Inboard
  • Sprint / Midget use only.

    • Vehicle Applications
    Driving Environment Open Wheel
    Vehicle Sub-Types Sprint, Midget, etc… Dirt or Pavement
    Application Duty Heavy Duty

    Hub Dimensions

    Sprint Inboard Hub Kit - Dynamic Drawing Sprint Inboard Hub Kit - Dynamic Drawing Zoom Image
    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter: 300-9366
    8 Bolt Adapter 300-10156
    Inner Bearing
    Inner Bearing Set - BCA#:
    Outer Bearing
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race
    Outer Hub Bearing - Race
