Hub No: 270-11746

Call (805) 388-1188

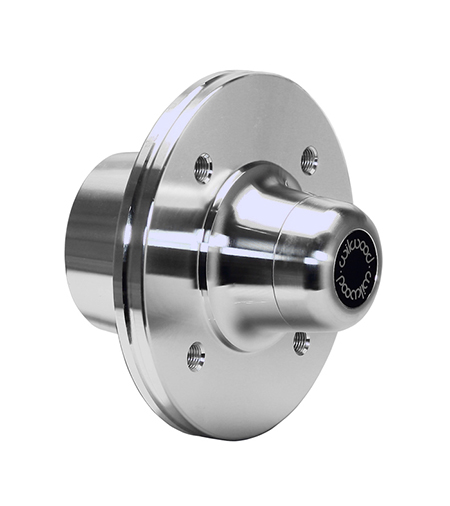

Hub - Hat Mount
Prod #: 270-11746
Price: $142.43



Hub - Hat Mount - Product Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Sunbeam Tiger hubs are single drilled on a 4 x 4.25" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.


Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 3.3
UPC Number
UPC 889545068474
Rotor Compatibility
Rotor Mount Bolt Circle (in)
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Hat
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) 4 x 4.25
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 7/16-20
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Sunbeam Tiger


  • Hub Dimensions

    Hub Dimensions (in)
    Dim A Dim N 2.43
    Dim D 2.432 Dim P 3.06
    Dim H 1.149 Dim Q 0.05
    Dim M 3.17

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing 370-1236
    Inner Bearing Set - BCA#: A21
    Outer Bearing 370-0877
    Outer Bearing Set - BCA#: A2
    Inner Hub Bearing - Race 370-11758
    Outer Hub Bearing - Race 370-0876
