Hub No: 270-12730

Call (805) 388-1188
Hub - Vented Rotor Offset
Prod #: 270-12730
Price: $155.85

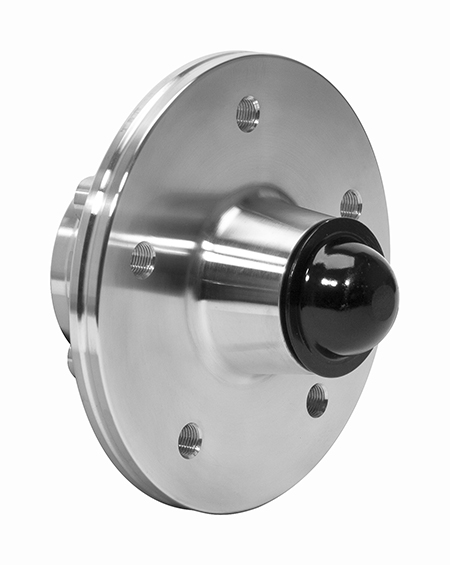

Wilwood Hub - Vented Rotor Offset Wilwood Hub - Vented Rotor Offset Zoom Image

Hub - Vented Rotor Offset - Product Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. These specific 41-56 Packard Hubs are double drilled to a 5 x 4.75"/5 x 5.00" wheel lug patterns. These Hubs include bearing races and use a press-on steel cap available separately (Part # 270-12403)

Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 3.5
UPC Number
UPC 889545068689
Rotor Compatibility
Rotor Mount Bolt Circle (in) 5 x 3.88
Rotor Offset Type Vented
Rotor Offset Dimension (in) 0.81
Mount Type & Dimensions
Mount Type Adapter
Adapter Bolt Circle(s) 6-Bolt Type 6 x 6.25
8-Bolt Type 8 x 7.00
Hub Bolt Circles
Bolt Circle 1 (in) 5 x 4.75
Bolt Circle 2 (in) 5 x 5.00
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 1/2-20
Stud Dia 2 (in) 1/2-20
Stud Dia 3 (in)

Hub Characteristics

  • 41-56 Packard
  • Rotor adapter Hub, can be used as a hat mount hub. Bearing Cap not included.

  • Hub Dimensions

    Hub - Vented Rotor Offset Drawing Hub - Vented Rotor Offset Drawing Zoom Image
    Hub Dimensions (in)
    Dim A 1.770 Dim N 2.370
    Dim D 2.749 Dim P 3.020
    Dim H 1.390 Dim Q 0.250
    Dim M 3.490

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter: 300-3307
    8 Bolt Adapter 300-3099
    Inner Bearing 370-12734
    Inner Bearing Set - BCA#: N-A
    Outer Bearing 370-12735
    Outer Bearing Set - BCA#: N-A
    Inner Hub Bearing - Race 370-12731
    Outer Hub Bearing - Race 370-12732
