Hub No: 270-12825

Call (805) 388-1188
Prod #: 270-12825
Price: $173.17

Truck - Product Description

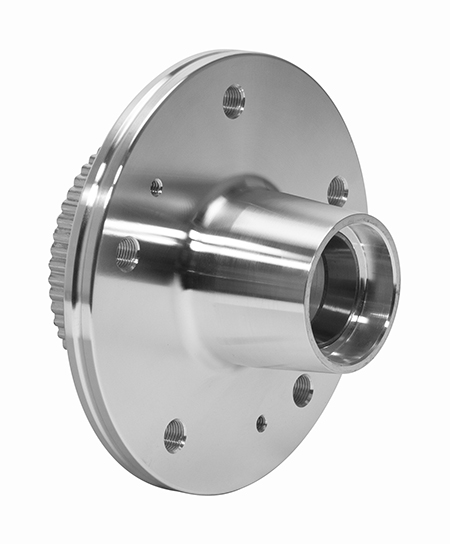

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats, these specific Hubs for 97-03 Ford F-150 are single drilled on a 5 on 5.31" wheel lug pattern. Hubs include bearing races and use a press-on steel cap available separately (Part # 270-12403)

Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 4
UPC Number
UPC 889545068702
Rotor Compatibility
Rotor Mount Bolt Circle (in)
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Hat
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) 5 x 5.32
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 1/2-20
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • 97-03 Ford F150

  • Hub Dimensions

    Truck Drawing Truck Drawing Zoom Image
    Hub Dimensions (in)
    Dim A Dim N 1.700
    Dim D 2.562 Dim P 3.160
    Dim H 2.175 Dim Q 0.250
    Dim M 3.470

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing 370-12831
    Inner Bearing Set - BCA#:
    Outer Bearing 370-12735
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race 370-12832
    Outer Hub Bearing - Race 370-0881
