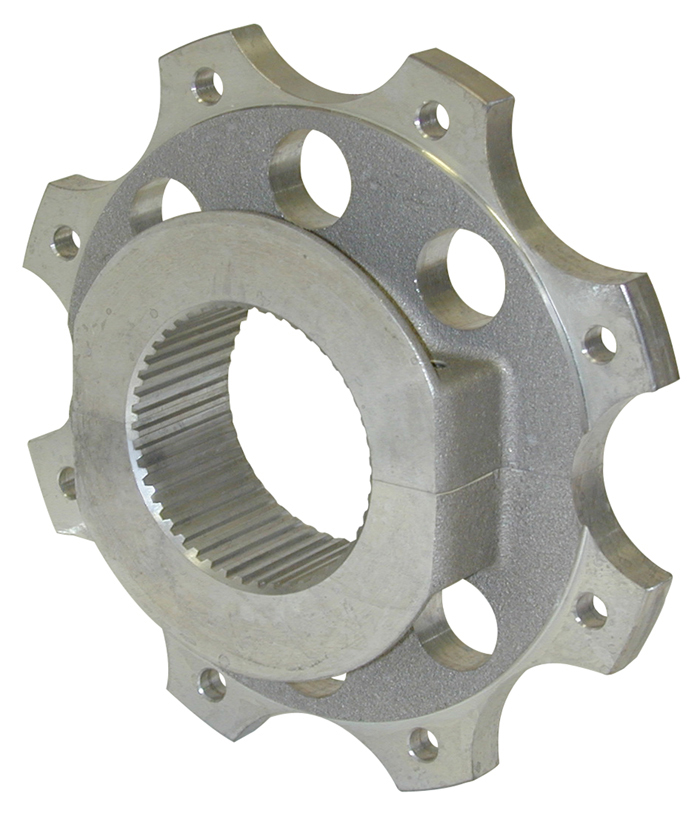

Sprint Inboard Hub - Fixed
Prod #: 270-2394
Price: $259.14


Sprint Inboard Hub - Fixed - Product Description

Lightweight and strong, this magnesium clamp provides sturdy fixed position mounting for rear inboard brake systems on live axle sprints and modifieds. Wilwood rotor hardware kits are available to attach slotted hole dynamic mount steel rotors and all other standard through-hole fixed mount discs.


Material & Finish
Material Magnesium
Finish Bare
Weight (lbs) 1.7
UPC Number
UPC 0
Rotor Compatibility
Rotor Mount Bolt Circle (in) 8 x 7.00
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Direct
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type 8 x 7.00
Hub Bolt Circles
Bolt Circle 1 (in) Splined
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in)
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Sprint Inboard
  • Sprint / Midget use only.

    • Vehicle Applications
    Driving Environment Open Wheel
    Vehicle Sub-Types Sprint, Midget, etc… Dirt or Pavement
    Application Duty Heavy Duty

    Hub Dimensions

    Sprint Inboard Hub - Fixed Drawing Sprint Inboard Hub - Fixed Drawing
    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing
    Inner Bearing Set - BCA#:
    Outer Bearing
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race
    Outer Hub Bearing - Race
