Flexline No: 220-16025


Call (805) 388-1188
Flexline Kit - 220-16025
Prod #: 220-16025
Price: $100.76

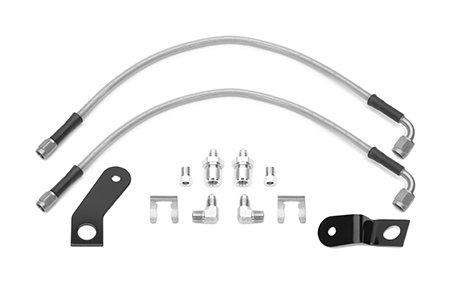

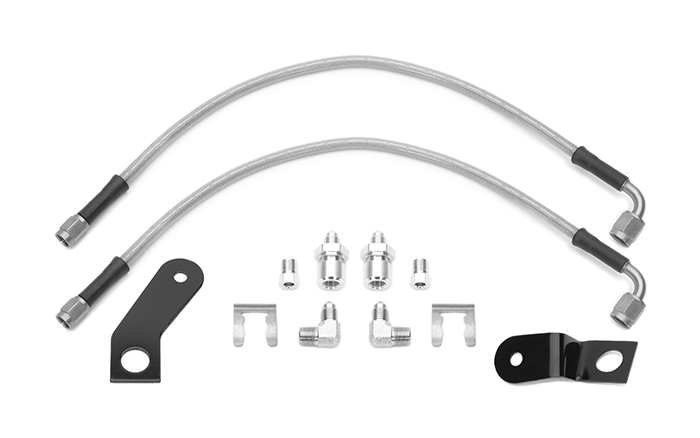

Wilwood Flexline Kit Wilwood Flexline Kit Zoom Image


Applications
Ram 1500 2013-2017
Kit Notes
FLEXLINE KIT,REAR,RAM TRUCK 1500 SERIES   2013-17,15.00 ROTOR

Size & Fittings
Length 16.00
Size -3
Chassis Fitting Size -3 to 3/8-24 IF
Inlet Fitting -3 Female
Inlet Fitting Angle Straight
Outlet Fitting -3 Female
Outlet Fitting Angle 90 Degree
Caliper Fit Angle 90 Degree
Caliper Fit Thread 1/8-27 NPT
Additional Info
Weight (lb) 0.98
Qty Each 1
Qty per Kit 2
Chassis Clip 300-15870
Line Bracket
UPC Number
UPC 889545095517

Caliper Fitting
Fitting 220-13125
Angle 90 Degree
Thread 1/8-27 NPT

Chassis Fitting
Fitting 220-13124
Size -3 to 3/8-24 IF

Flexline Kit Product Description

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.
