Flexline No: 220-9100

Call (805) 388-1188

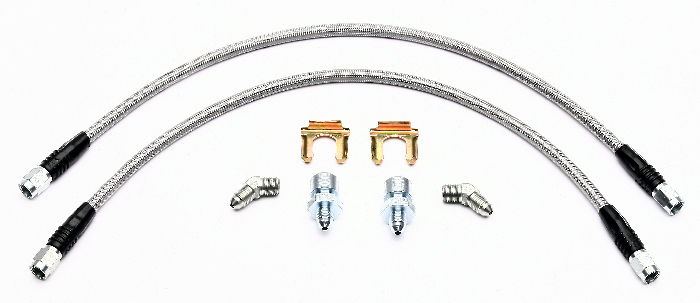

Flexline Kit - 220-9100
Prod #: 220-9100
Price: $76.94

C6 Corvette Front Kit
Kit Notes

Size & Fittings
Length 18.00
Size -3
Chassis Fitting Size -3 to M10 x 1 IF
Inlet Fitting -3 Female
Inlet Fitting Angle Straight
Outlet Fitting -3 Female
Outlet Fitting Angle Straight
Caliper Fit Angle 45 Degree
Caliper Fit Thread 1/8-27 NPT
Additional Info
Weight (lb) 0.80
Qty Each 1
Qty per Kit 2
Chassis Clip 300-15780
Line Bracket
UPC Number
UPC 889545051544

Caliper Fitting
Fitting 220-6412
Angle 45 Degree
Thread 1/8-27 NPT

Chassis Fitting
Fitting 220-6413
Size -3 to M10 x 1 IF

Flexline Kit Product Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This black anodized aluminum fitting connects Wilwood Billet Aluminum Reservoir 9/16-16 bottom outlet to 11/16-20 threaded inlet for direct mount reservoir plumbing of Remote Tandem or Compact Remote Master Cylinders. Supplied with sealing O-rings.

Wilwood Flexline Fittings Instructions

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
