MasterCylinder No: 260-10377


Call (805) 388-1188
Motorcycle Forward Control Master Cylinder
Prod #: 260-10377
Price: $287.36

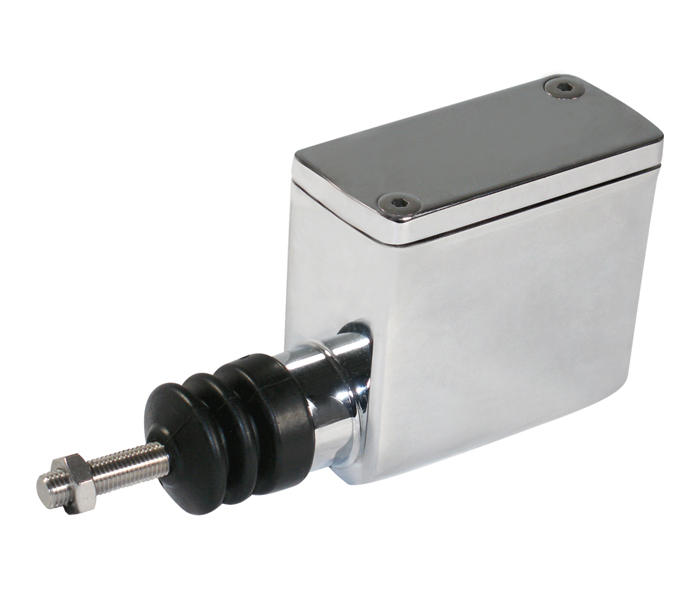

Wilwood Motorcycle Forward Control Master Cylinder Wilwood Motorcycle Forward Control Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 5/8"
Area (in²) 0.310
Stroke 0.75
Volume (cu in) 0.23
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Chrome
Reservoir
Res Type Integral
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545066616
Product Documents
Rebuild Kit Product Data Sheet

N/A


Motorcycle Forward Control Master Cylinder - Product Summary

Wilwood’s Right Hand Motorcycle Foot Pedal Master Cylinder comes with show chrome finished body and lid. Constructed of billet aluminum, this forward control master cylinder comes with an industry standard 5/8” bore and 3/8-24 threaded outlet with relieved area for banjo fitting seal. Side mounting holes are 2.25” apart.





Master Cylinder Dimensions

Wilwood Motorcycle Forward Control Master Cylinder Drawing Wilwood Motorcycle Forward Control Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes


Additional related products:




More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
