MasterCylinder No: 260-11097


Call (805) 388-1188
Tandem Master Cylinder (TM1)
Prod #: 260-11097
Price: $102.51

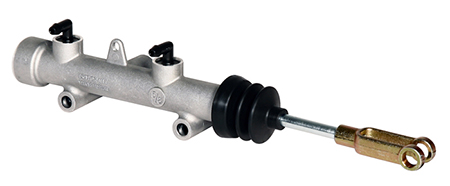

Wilwood Tandem Master Cylinder (TM1) Wilwood Tandem Master Cylinder (TM1) Zoom Image

Master Cylinder Dimensions
Bore Size 5/8"
Area (in²) 0.310
Stroke 1.31
Volume (cu in) 0.4
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum / Plastic
Finish Bare
Reservoir
Res Type Remote
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545066722
Product Documents
Rebuild Kit Product Data Sheet

N/A

Click To Download

Tandem Master Cylinder (TM1) - Product Summary

The TM1 master cylinder is manufactured from lightweight aluminum with a 5/8” bore and dual 10mm x 1.00 outlets. Side mounting on 3.53” bolt spacing using 5/16” bolts, it’s compact design is perfect for applications where space is limited. Includes push rod, dust boot and a permanent mount .39” diameter clevis. An alternative 5/16-24” threaded pushrod is available under part # 230-7134. Remote reservoir kits are available under part # 260-11098.





Master Cylinder Dimensions

Wilwood Tandem Master Cylinder (TM1) Drawing Wilwood Tandem Master Cylinder (TM1) Drawing Zoom Image
Additional Dimensions
Overall Length(in) 11.53"
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in) 1/4" Hose
Outlet Size 1 (in) 10MM X 1.00
Outlet Fit 1 (in)
Outlet Size 2 (in) 10MM X 1.00
Outlet Fit 2 (in)
Additional Notes


Additional related products:




More Details
More Details
More Details
