MasterCylinder No: 260-11179

Call (805) 388-1188
Proportioning Valve
Prod #: 260-11179
Price: $97.14

Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum / Steel
Finish Clear Anodize
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate 0 to 57%
UPC Number
UPC 889545066746
Product Documents
Product Data Sheet


Click To Download

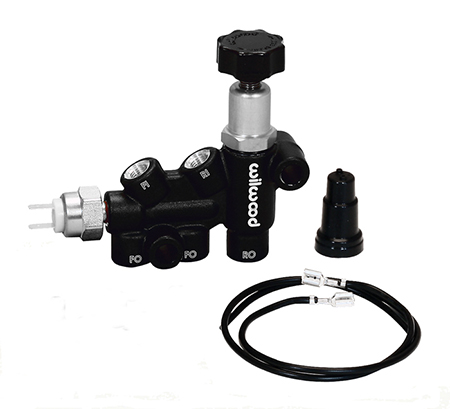

Proportioning Valve - Product Summary

Wilwood’s new Combination Proportioning Valve substantially simplifies mounting, plumbing, wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and can be used in conjunction with any tandem outlet or dual mount master cylinder assemblies. The rear circuit has a single inlet and single outlet with the adjustable proportioning valve. The front circuit has a single inlet with two outlets. It can be run as a single outlet with one outlet plugged, or used to split the plumbing on its way to the front calipers.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in) 3/8-24 IF
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24 IF
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
