MasterCylinder No: 260-1304


Call (805) 388-1188
Integral Reservoir Compact Master Cylinder
Prod #: 260-1304
Price: $62.84

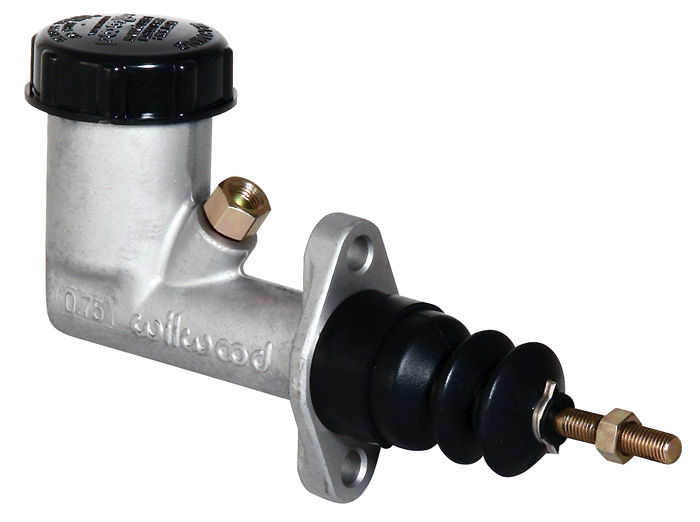

Wilwood Integral Reservoir Compact Master Cylinder Wilwood Integral Reservoir Compact Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 3/4"
Area (in²) 0.440
Stroke 1.40
Volume (cu in) 0.61
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Bare
Reservoir
Res Type Integral
Res Size (oz) 1.4
Res Size(cu in) 2.57
Rate
UPC Number
UPC 889545067118
Product Documents
Rebuild Kit Product Data Sheet

N/A


Integral Reservoir Compact Master Cylinder - Product Summary

This popular lightweight, compact design is used for clutch and small master cylinder requirements and is well known for its dependability. It incorporates an improved plastic screw-on filler cap which protects the fluid in the 1.4 ounce reservoir, and is available in three bore sizes.





Master Cylinder Dimensions

Wilwood Integral Reservoir Compact Master Cylinder Drawing Wilwood Integral Reservoir Compact Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in) 3.91"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
