MasterCylinder No: 260-1333


Call (805) 388-1188
Slave Cylinder
Prod #: 260-1333
Price: $87.84

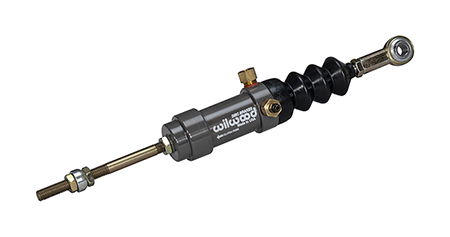

Wilwood Slave Cylinder Wilwood Slave Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 7/8"
Area (in²) 0.440
Stroke 1.38
Volume (cu in) 0.60
Master Cylinder Description
Type
Outlets
Material Aluminum / Steel
Finish Type III Ano
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545067170
Product Documents
Rebuild Kit Product Data Sheet


260-5524 Click To Download

Slave Cylinder - Product Summary

This “Pull Type” slave cylinder is made from billet aluminum for high strength and plated with a tough anti-corrosion finish. The stainless steel push rod has a longer stroke than most cylinders assuring a full release of the clutch. This slave cylinder is ideal for Drag Racing, Late Model Stock, Pro Series and Off Road applications. Recommended master cylinder sizing is ¾”.





Master Cylinder Dimensions

Wilwood Slave Cylinder Drawing Wilwood Slave Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 11.70"
Flange to End Length (in)
Inlet Size (in) 1/8-27 NPT
Inlet Fit (in) 3/8-24 IF Female
Outlet Size 1 (in)
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes


Additional related products:




More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
