MasterCylinder No: 260-13524

Call (805) 388-1188
ATV Master Cylinder
Prod #: 260-13524
Price: $61.43

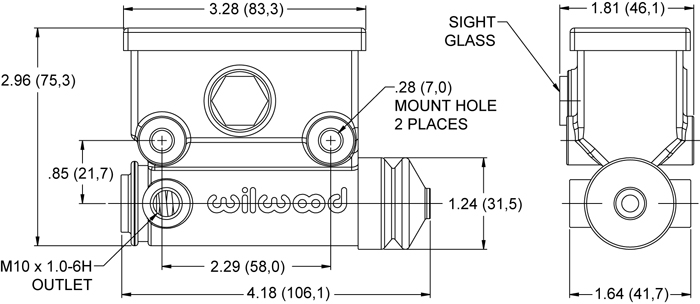

Master Cylinder Dimensions
Bore Size 19mm
Area (in²) 0.44
Stroke 0.5
Volume (cu in) 0.22
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Black Anodize
Reservoir
Res Type Integral
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545074291
Product Documents
Rebuild Kit Product Data Sheet

N/A


ATV Master Cylinder - Product Summary

Wilwood’s ATV Master cylinder is available in both L/H and R/H mounting configurations and 19mm bore. Side mounting with a dimension of 2.29” center to center and a 10mm x 1.0 fluid outlet. Dot 5 versions use seals specially designed for Dot 5 silicone fluid use. Aluminum lid and body construction with a black anodized finish.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 10MM X 1.00
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
