MasterCylinder No: 260-14242-BK


Call (805) 388-1188

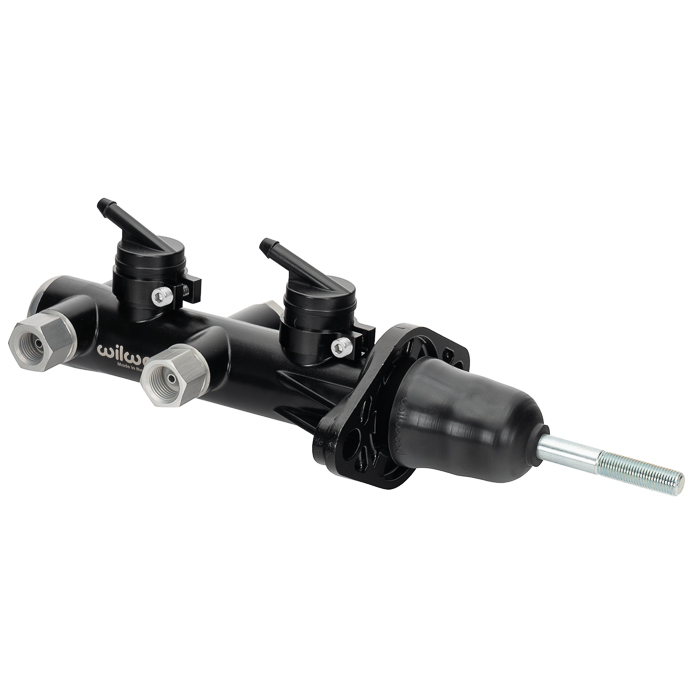

Remote Tandem Master Cylinder w/ Pushrod
Prod #: 260-14242-BK
Price: $323.32


Master Cylinder Dimensions
Bore Size 15/16"
Area (in²) 0.690
Stroke
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum / Plastic
Finish Black E-coat
Reservoir
Res Type Remote
Res Size (oz) 7.0 / 7.0
Res Size(cu in) 12.6 / 12.6
Rate
UPC Number
UPC 889545078138
Product Documents
Rebuild Kit Product Data Sheet

Call for info
(805) 388-1188

Click To Download

Remote Tandem Master Cylinder w/ Pushrod - Product Summary

Wilwood’s Remote Tandem Master Cylinder with pushrod is available in 4 bore sizes: 7/8”, 15/16”, 1.00” and 1-1/8”, and 2 finishes: ball burnished, and black e-coat. They’re designed to fit most mounting flanges and feature outlet ports both sides, for multiple plumbing options. Remote mount reservoir and bracket assemblies further enhance the utility of these cylinders.





Master Cylinder Dimensions

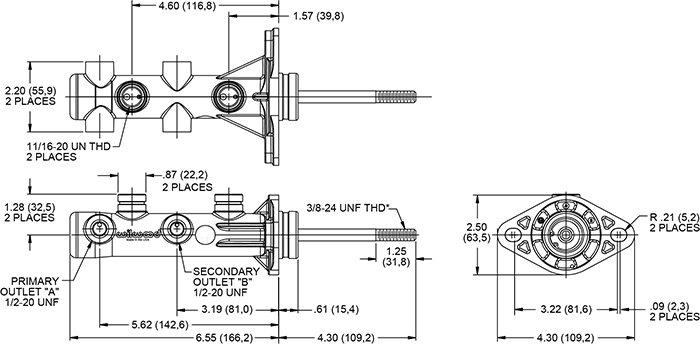

Wilwood Remote Tandem Master Cylinder w/ Pushrod Drawing Wilwood Remote Tandem Master Cylinder w/ Pushrod Drawing Zoom Image
Additional Dimensions
Overall Length(in) 10.76"
Flange to End Length (in) 6.56"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in) 1/4" Hose
Outlet Size 1 (in) 1/2-20
Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF
Outlet Size 2 (in) 1/2-20
Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF
Additional Notes
