MasterCylinder No: 260-14248

Call (805) 388-1188
Proportioning Valve
Prod #: 260-14248
Price: $127.50

Master Cylinder Dimensions
Bore Size N-A
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate 0 to 57%
UPC Number
UPC 889545078190
Product Documents
Product Data Sheet


Click To Download

Proportioning Valve - Product Summary

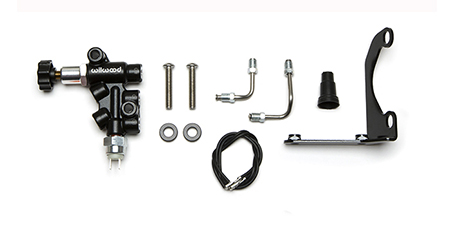

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. Specifically designed to work in conjunction with Wilwood Remote Tandem Master Cylinders in manual or boosted system applications. Kit includes: Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in) 3/8-24 IF
Inlet Fit (in) 3/8-24 IF
Outlet Size 1 (in) 3/8-24 IF
Outlet Fit 1 (in) 3/8-24 IF
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
