MasterCylinder No: 260-14347

Call (805) 388-1188

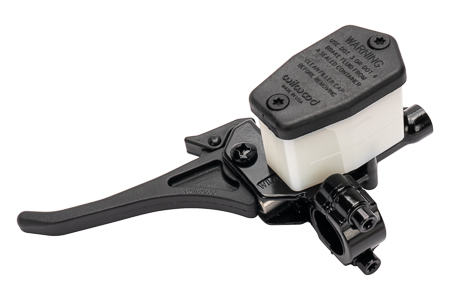

Handlebar Master Cylinder w/Removable Clamp
Prod #: 260-14347
Price: $81.00

Master Cylinder Dimensions
Bore Size 5/8"
Area (in²) 0.31
Stroke 0.45
Volume (cu in) 0.12
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Black E-coat
Res Type Integral
Res Size (oz)
Res Size(cu in)
UPC Number
UPC 889545079463
Product Documents
Product Data Sheet

Handlebar Master Cylinder w/Removable Clamp - Product Summary

Wilwood’s 5/8” bore Left Hand Handlebar Master Cylinder is compact, lightweight, and specifically designed for a variety of recreational, sport, and outdoor equipment applications. This enhanced version provides precise pressure modulation for one or two-finger lever apply. It also includes a removable clamp to allow unit installation without having to remove the handlebar grip. Constructed of materials and finishes designed to resist corrosion, our master cylinder fits standard 7/8” diameter handlebars and is also available with matching Right Hand units. Impact resistant lever assembly comes with a three-position hydraulic parking brake lock. Has 3/8-24 IVF outlet port.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in) 7.10"
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24 IF
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
