MasterCylinder No: 260-15091

Call (805) 388-1188
GS Compact Remote Master Cylinder
Prod #: 260-15091
Price: $70.19

Master Cylinder Dimensions
Bore Size 3/4"
Area (in²) 0.440
Stroke 1.25
Volume (cu in) 0.55
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Black E-coat
Res Type Remote
Res Size (oz)
Res Size(cu in)
UPC Number
UPC 889545074352
Product Documents
Rebuild Kit Product Data Sheet

260-14119 Click To Download

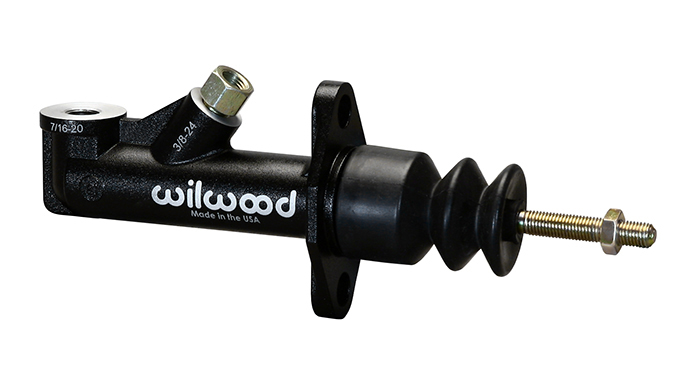

GS Compact Remote Master Cylinder - Product Summary

Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

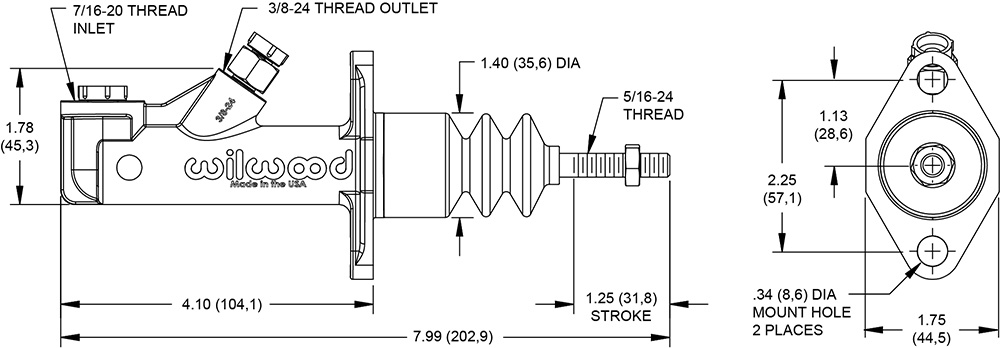

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in) 7.85"
Flange to End Length (in) 4.10
Inlet Size (in) 7/16-20
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
