MasterCylinder No: 260-15096

Call (805) 388-1188
GS Compact Integral Master Cylinder
Prod #: 260-15096
Price: $83.55

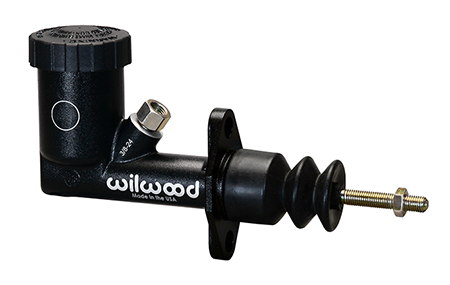

Wilwood GS Compact Integral Master Cylinder Wilwood GS Compact Integral Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 5/8"
Area (in²) 0.310
Stroke 1.25
Volume (cu in) 0.39
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Black E-coat
Res Type Integral
Res Size (oz) 1.5
Res Size(cu in) 2.7
UPC Number
UPC 889545074376
Product Documents
Rebuild Kit Product Data Sheet

260-14117 Click To Download

GS Compact Integral Master Cylinder - Product Summary

Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

Master Cylinder Dimensions

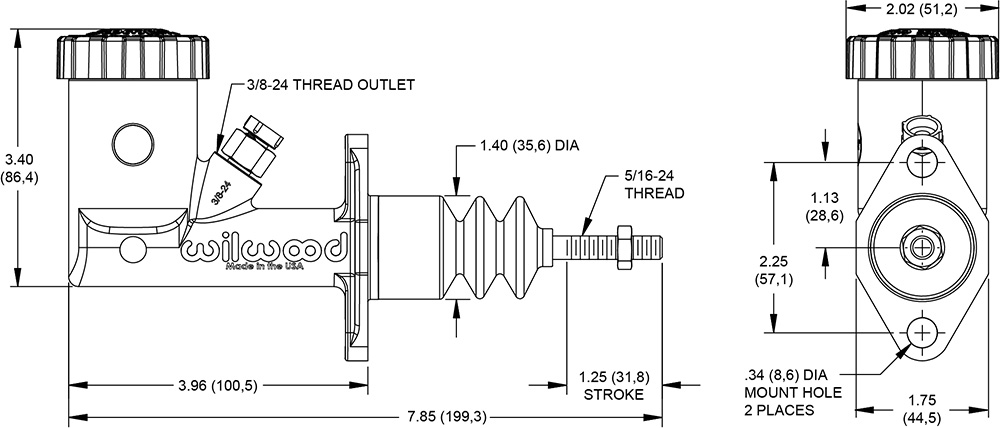

Wilwood GS Compact Integral Master Cylinder Drawing Wilwood GS Compact Integral Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 7.99"
Flange to End Length (in) 3.96
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes

Additional related products:

More Details
More Details
