MasterCylinder No: 260-15490-BK

Call (805) 388-1188

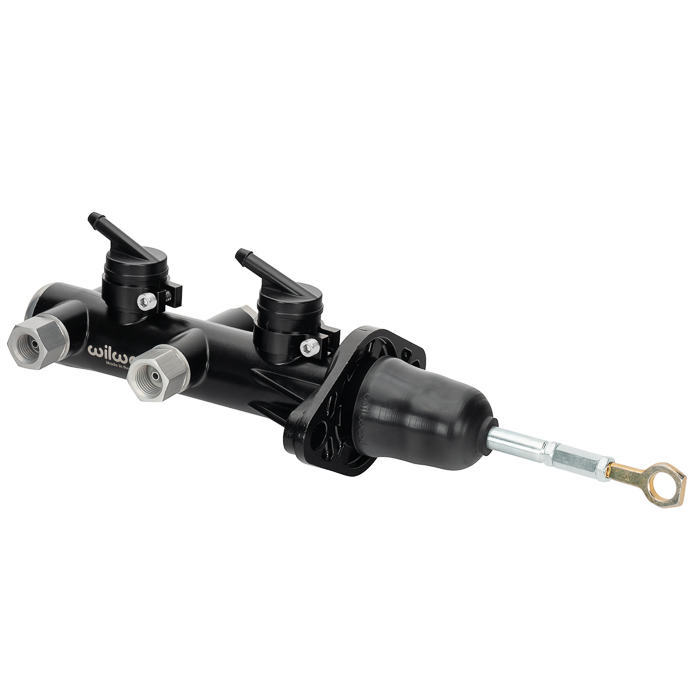

Remote Tandem M/C for Classic Mustang
Prod #: 260-15490-BK
Price: $345.85

Master Cylinder Dimensions
Bore Size 7/8"
Area (in²) 0.600
Stroke 1.12
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum / Plastic
Finish Black E-coat
Res Type Remote
Res Size (oz) 7.0 / 7.0
Res Size(cu in) 12.6 / 12.6
UPC Number
UPC 889545089943
Product Documents
Rebuild Kit Product Data Sheet

Call for info
(805) 388-1188

Click To Download

Remote Tandem M/C for Classic Mustang - Product Summary

Wilwood’s Remote Tandem Master Cylinder for Classic Mustang is available in 2 bore sizes 7/8” and 15/16”, and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40” and a pushrod and eyelet for Calssic Mustang and other Ford vehicles from 1965 to 1973. Remote Tandem Master Cylinders offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.

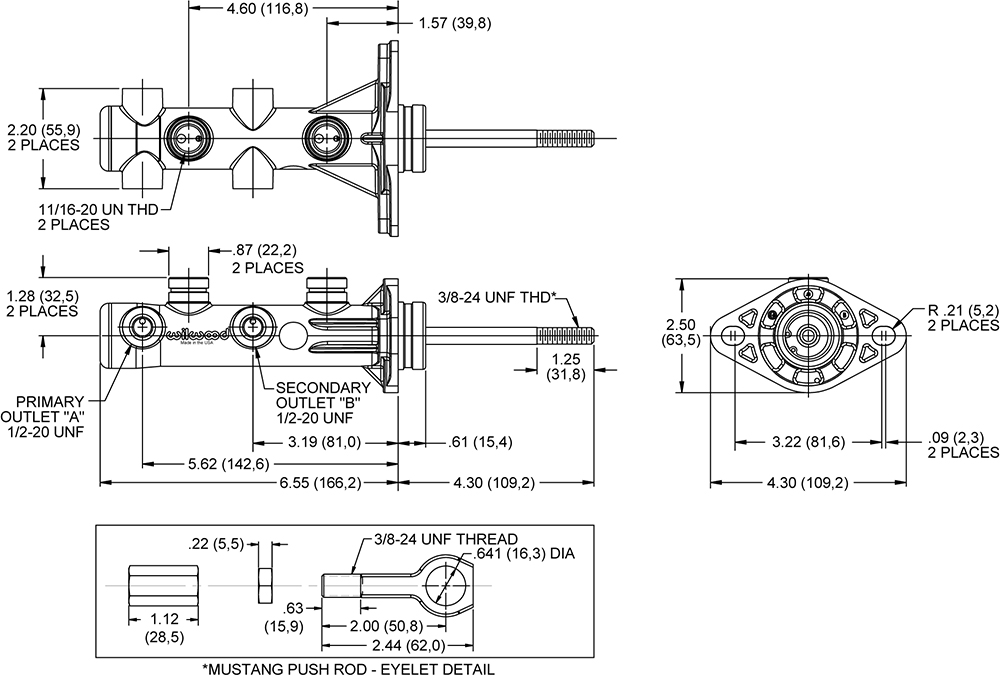

Master Cylinder Dimensions

Wilwood Remote Tandem M/C for Classic Mustang Drawing Wilwood Remote Tandem M/C for Classic Mustang Drawing Zoom Image
Additional Dimensions
Overall Length(in) 10.76"
Flange to End Length (in) 6.56"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in) 1/4" Hose
Outlet Size 1 (in) 1/2-20
Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF
Outlet Size 2 (in) 1/2-20
Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF
Additional Notes
