MasterCylinder No: 260-15520-BK


Call (805) 388-1188
Compact Tandem Master for Classic Mustang
Prod #: 260-15520-BK
Price: $319.74

Master Cylinder Dimensions
Bore Size 7/8"
Area (in²) 0.600
Stroke 1.10
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum
Finish Black E-coat
Reservoir
Res Type Integral
Res Size (oz) 7.8 / 4.7
Res Size(cu in) 14.0 / 8.5
Rate
UPC Number
UPC 889545088588
Product Documents
Rebuild Kit Product Data Sheet

Call for info
(805) 388-1188

Click To Download

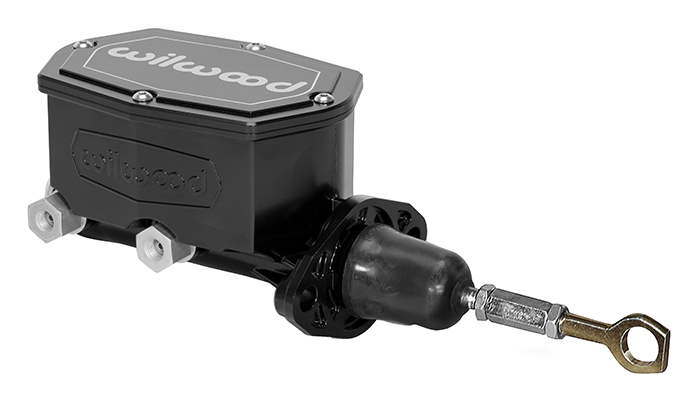

Compact Tandem Master for Classic Mustang - Product Summary

Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8" through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

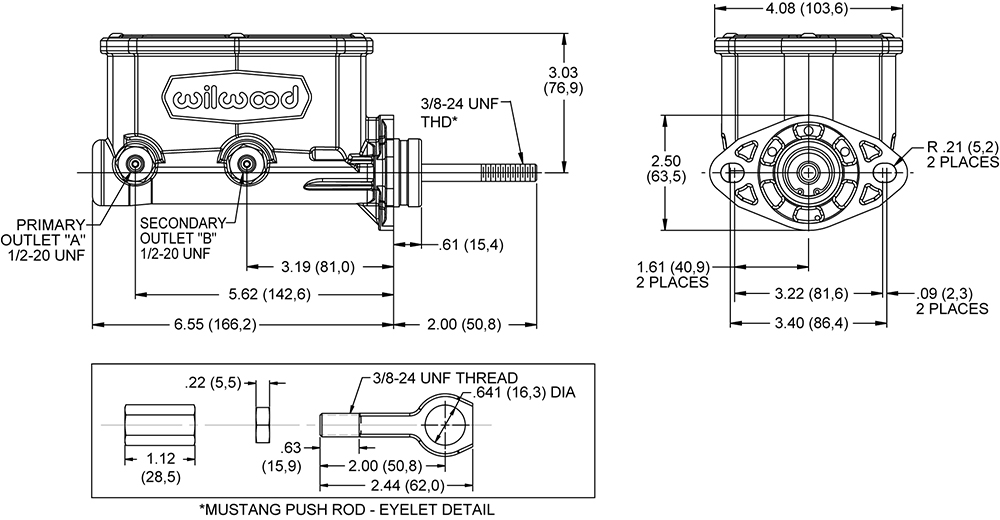

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in) 12.32"
Flange to End Length (in) 6.55"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 1/2-20
Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF
Outlet Size 2 (in) 1/2-20
Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF
Additional Notes
