MasterCylinder No: 260-15521-BK


Call (805) 388-1188

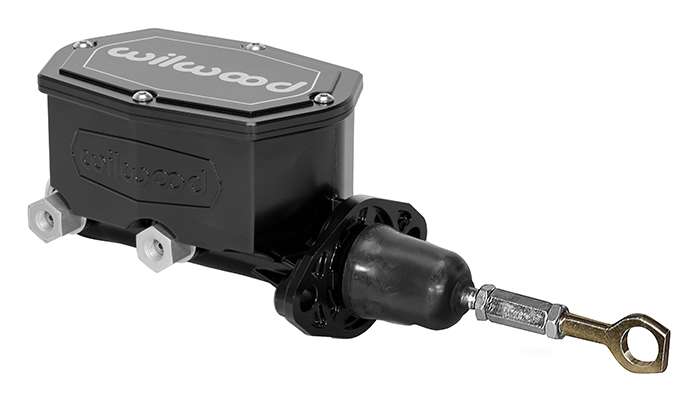

Compact Tandem Master for Classic Mustang
Prod #: 260-15521-BK
Price: $369.30


Master Cylinder Dimensions
Bore Size 15/16"
Area (in²) 0.690
Stroke 1.10
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum
Finish Black E-coat
Reservoir
Res Type Integral
Res Size (oz) 7.8 / 4.7
Res Size(cu in) 14.0 / 8.5
Rate
UPC Number
UPC 889545088601
Product Documents
Rebuild Kit Product Data Sheet

Call for info
(805) 388-1188

Click To Download

Compact Tandem Master for Classic Mustang - Product Summary

Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8" through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.





Master Cylinder Dimensions

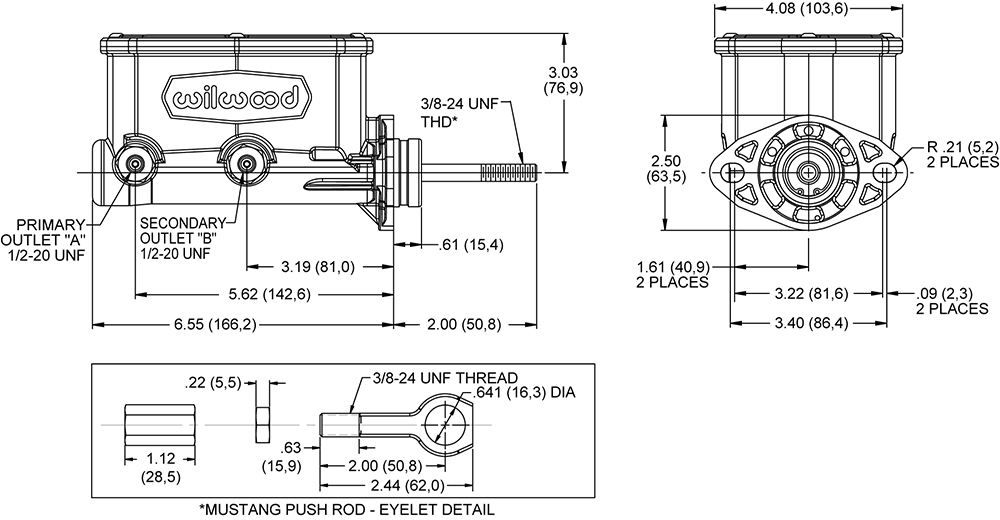

Wilwood Compact Tandem Master for Classic Mustang Drawing Wilwood Compact Tandem Master for Classic Mustang Drawing Zoom Image
Additional Dimensions
Overall Length(in) 12.32"
Flange to End Length (in) 6.55"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 1/2-20
Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF
Outlet Size 2 (in) 1/2-20
Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF
Additional Notes


Additional related products:




More Details
More Details
More Details
