MasterCylinder No: 260-16389


Call (805) 388-1188
Lightweight Reservoir Kit -Direct Mount
Prod #: 260-16389
Price: $114.90

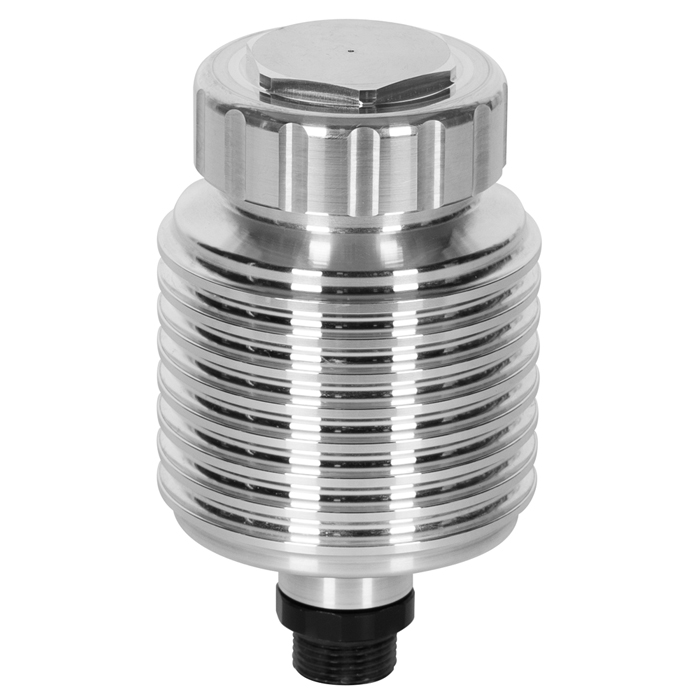

Wilwood Lightweight Reservoir Kit
-Direct Mount Wilwood Lightweight Reservoir Kit -Direct Mount Zoom Image

Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum
Finish Burnished
Reservoir
Res Type Remote
Res Size (oz) 4.0
Res Size(cu in) 7.2
Rate
UPC Number
UPC 889545100341
Product Documents
Product Data Sheet


Click To Download

Lightweight Reservoir Kit -Direct Mount - Product Summary

Machined billet aluminum reservoir has the traditional finned look of a classic hot rod speed part. Each durable reservoir holds 4 fluid ounces of fluid for brake or clutch master cylinder. Choose from a bright burnished aluminum look with a matching aluminum cap (4.6 ounces) or the dull gray Type III hard anodized finish with a black nylon cap (3.8 ounces), both with an internal rubber bellows seal. For installation, selections include a version configured with fittings to directly mount to the Wilwood Remote Tandem and Compact Remote Master Cylinders, or remotely mount with optional braided stainless lines and billet firewall bracket.





Master Cylinder Dimensions

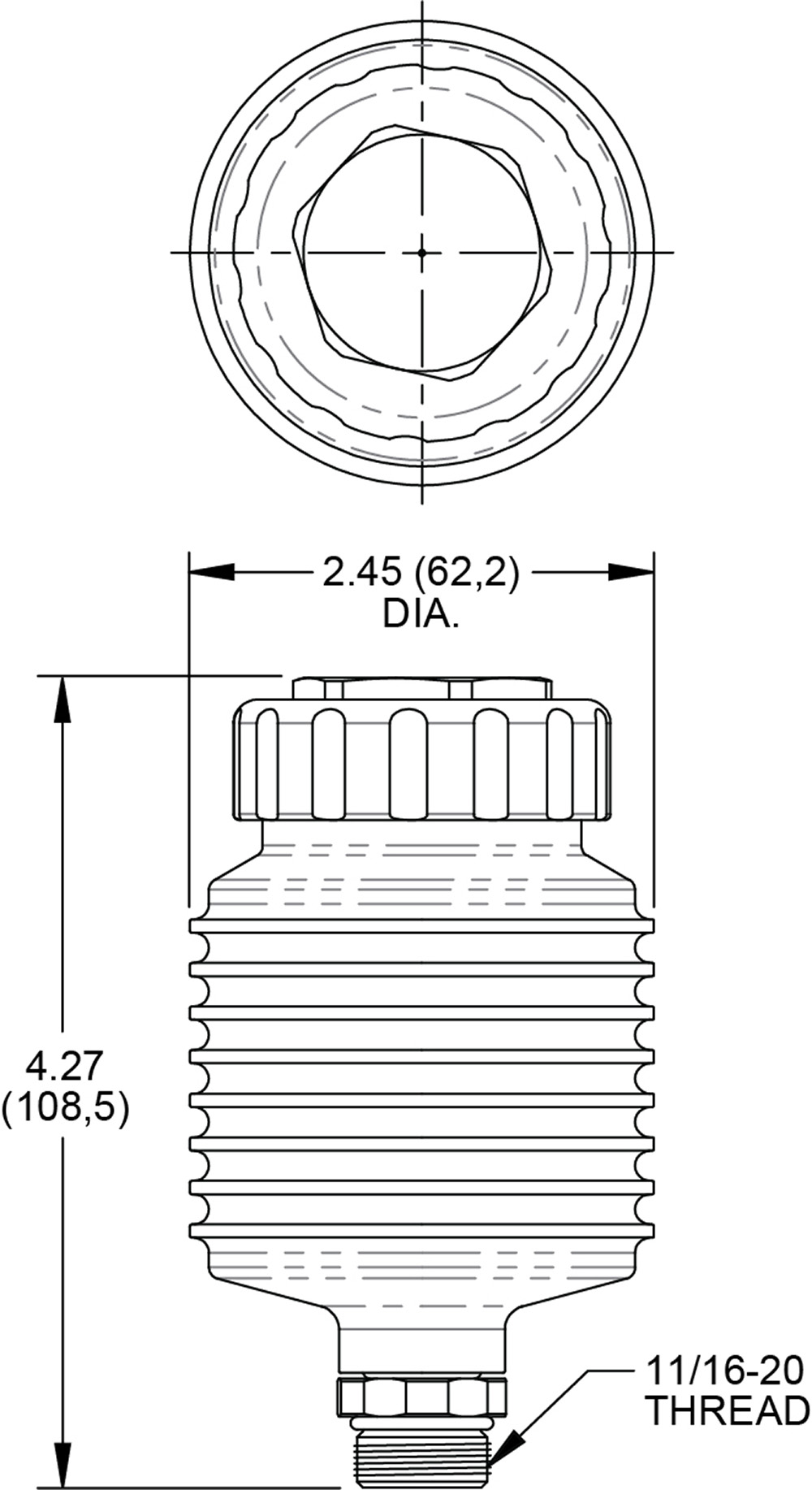

Wilwood Lightweight Reservoir Kit
-Direct Mount Drawing Wilwood Lightweight Reservoir Kit -Direct Mount Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 9/16-18
Outlet Fit 1 (in) 11/16-20
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
