MasterCylinder No: 260-16390


Call (805) 388-1188
Lightweight Reservoir Kit -Remote Mount
Prod #: 260-16390
Price: $114.90


Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum
Finish Burnished
Reservoir
Res Type Remote
Res Size (oz) 4.0
Res Size(cu in) 7.2
Rate
UPC Number
UPC 889545100358
Product Documents
Product Data Sheet


Click To Download

Lightweight Reservoir Kit -Remote Mount - Product Summary

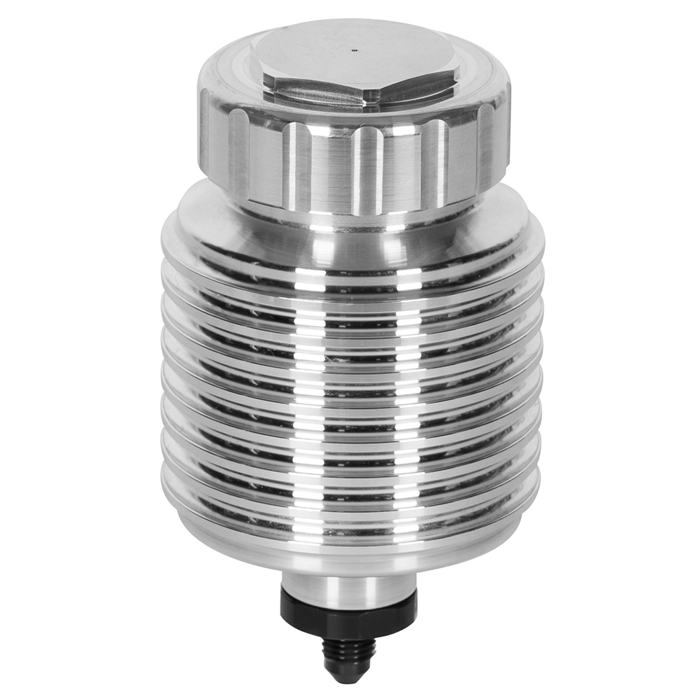

Machined billet aluminum reservoir has the classic finned look of traditional hot rod speed parts, for lighter weight and passive cooling. Choose from bright machined aluminum with matching cap (4.6 ounce weight) or Type III hard anodized gray with a black nylon cap (3.8 ounce weight), with internal rubber bellow cap seal. Both durable reservoirs hold 4 fluid ounces for brake or clutch master cylinder. Billet clamps, stainless flex lines, and fittings available for remote mount to Wilwood Remote Tandem or Compact Remote Master Cylinders, or mount directly with a 9/16-18 to 11/16-20 fitting and O-ring.





Master Cylinder Dimensions

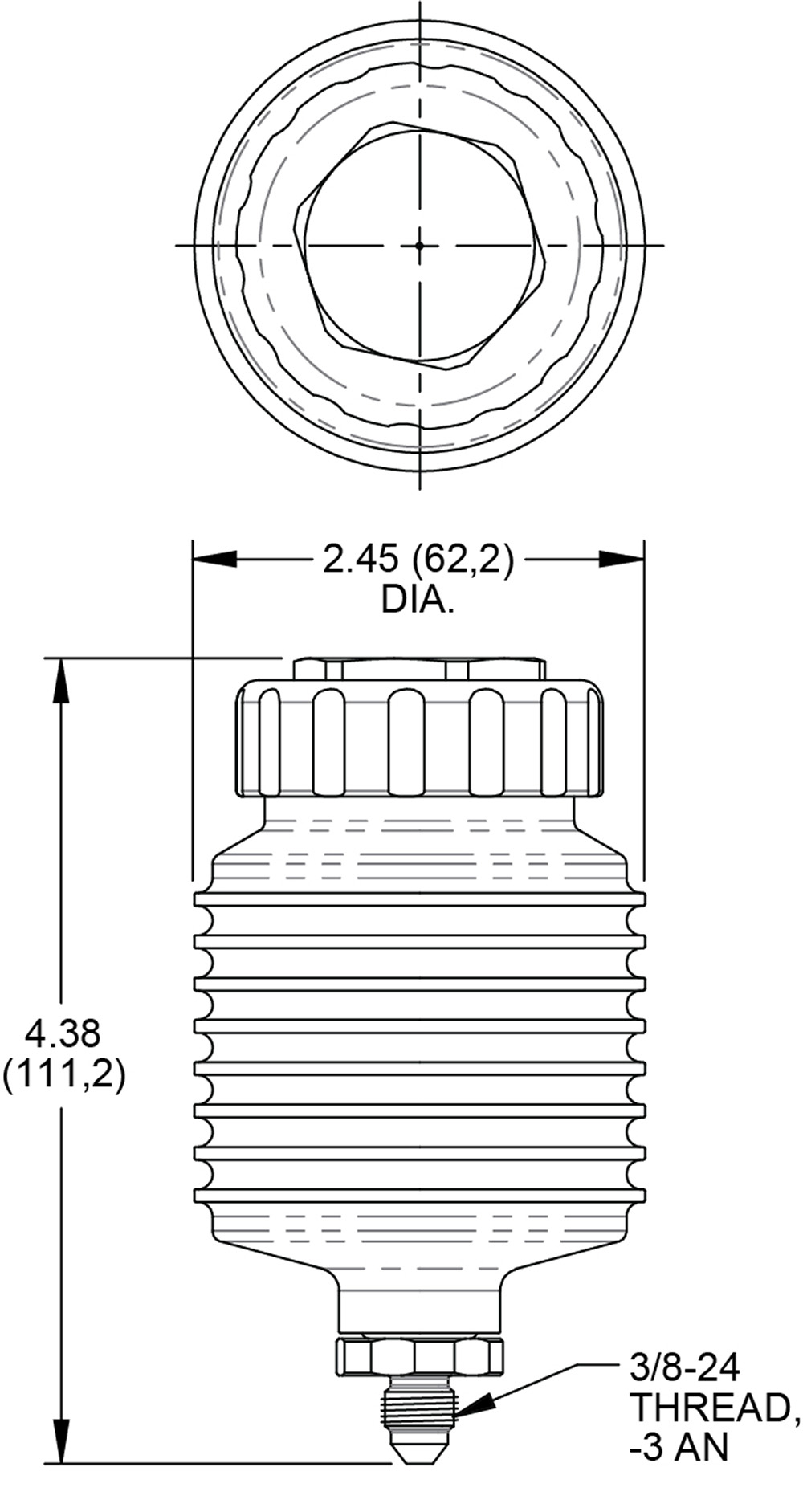

Wilwood Lightweight Reservoir Kit
-Remote Mount Drawing Wilwood Lightweight Reservoir Kit -Remote Mount Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 9/16-18
Outlet Fit 1 (in) 11/16-20
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes


Additional related products:




More Details
