MasterCylinder No: 260-2636

Call (805) 388-1188
Integral Reservoir Compact Master Cylinder
Prod #: 260-2636
Price: $62.84

Master Cylinder Dimensions
Bore Size 5/8"
Area (in²) 0.310
Stroke 1.40
Volume (cu in) 0.43
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Bare
Res Type Integral
Res Size (oz) 1.4
Res Size(cu in) 2.57
UPC Number
UPC 889545067415
Product Documents
Rebuild Kit Product Data Sheet


Integral Reservoir Compact Master Cylinder - Product Summary

This popular lightweight, compact design is used for clutch and small master cylinder requirements and is well known for its dependability. It incorporates an improved plastic screw-on filler cap which protects the fluid in the 1.4 ounce reservoir, and is available in three bore sizes.

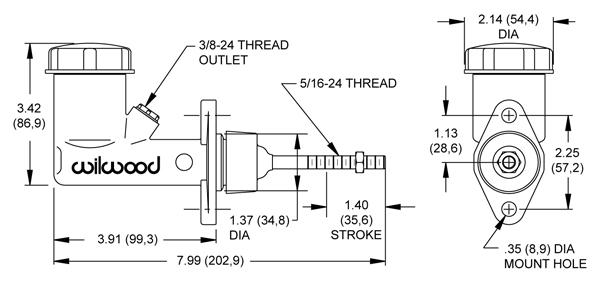

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in) 3.91"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
