MasterCylinder No: 260-3374

Call (805) 388-1188
Combination Remote Master Cylinder
Prod #: 260-3374
Price: $111.73

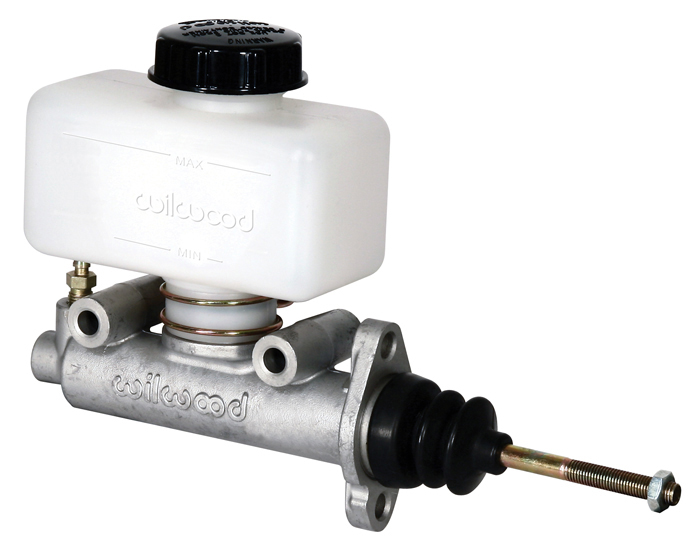

Wilwood Combination Remote Master Cylinder Wilwood Combination Remote Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 3/4"
Area (in²) 0.440
Stroke 1.10
Volume (cu in) 0.48
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Bare
Res Type Remote
Res Size (oz) 10.7 or 4.0
Res Size(cu in) 19.3 or 7.2
UPC Number
UPC 889545067477
Product Documents

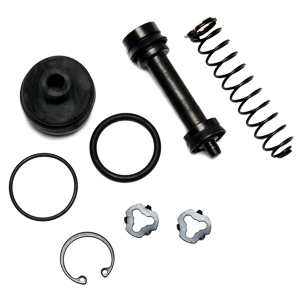

Rebuild Kit Product Data Sheet

260-3881 Click To Download

Combination Remote Master Cylinder - Product Summary

Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.

Master Cylinder Dimensions

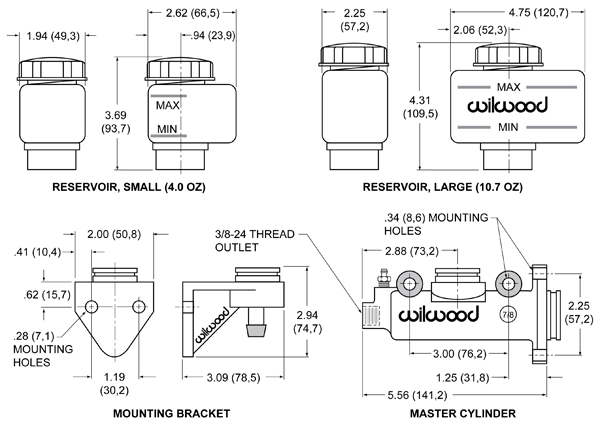

Wilwood Combination Remote Master Cylinder Drawing Wilwood Combination Remote Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 9.87"
Flange to End Length (in) 5.56"
Inlet Size (in) 1.35"
Inlet Fit (in) 3/8" Hose
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
