MasterCylinder No: 260-4202

Call (805) 388-1188
Handlebar Master Cylinder
Prod #: 260-4202
Price: $75.00

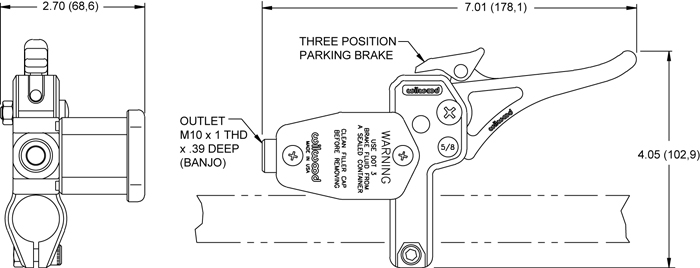

Master Cylinder Dimensions
Bore Size 5/8"
Area (in²) 0.31
Stroke 0.45
Volume (cu in) 0.12
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Black E-coat
Reservoir
Res Type Integral
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545067675
Product Documents
Rebuild Kit Product Data Sheet

N/A

Click To Download

Handlebar Master Cylinder - Product Summary

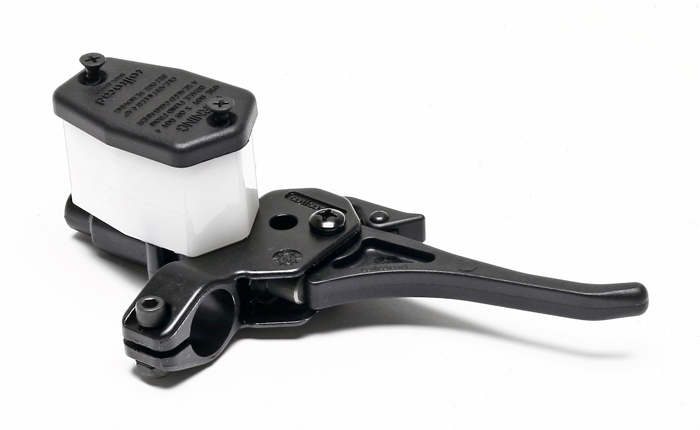

Wilwood's 5/8” bore Right Hand Handlebar Master Cylinder is compact, lightweight and specifically designed for a variety of recreational, sport and outdoor equipment applications. Constructed of materials and finishes designed to resist corrosion, our master cylinder fits standard 7/8” diameter handlebars and is also available with matching L/H units. Impact resistant lever assembly comes with a three-position hydraulic parking brake lock. The housing is designed to accept a threaded brake light switch (1/4-32). The large capacity reservoir is translucent for easy fluid level viewing. The fluid inlet accepts an M10 x 1 thread, Banjo type fitting.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in) 7.50"
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 10MM X 1.00
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
