MasterCylinder No: 260-4894


Call (805) 388-1188
Tandem Master Cylinder
Prod #: 260-4894
Price: $138.18

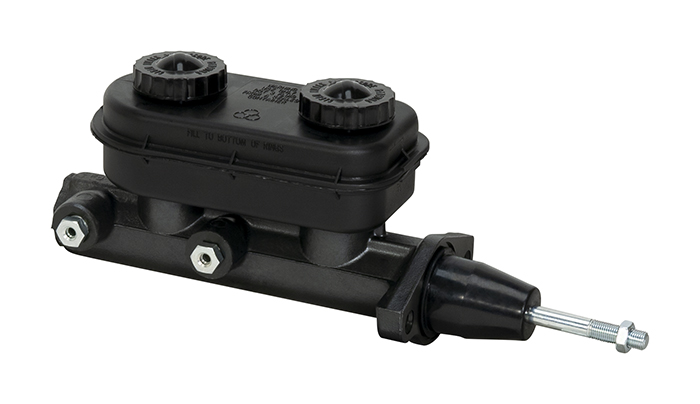

Wilwood Tandem Master Cylinder Wilwood Tandem Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 1-1/16"
Area (in²) 0.880
Stroke 1.35
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum / Plastic
Finish Anodize
Reservoir
Res Type Integral
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545067699
Product Documents
Rebuild Kit Product Data Sheet


260-4896 Click To Download

Tandem Master Cylinder - Product Summary

Made from durable lightweight aluminum with a large capacity plastic reservoir and dual outlet bores, this master cylinder utilizes standard O.E.M. internal components. Standard factory mounting bolt holes can be adapted to racing pedal assemblies with an optional mounting adapter bracket (including push rod and dust boot, see diagram below). This lightweight (2.5 pounds) reliable master cylinder is used for Drag Racing, Late Model Stock Cars, Street Rod and Off Road applications.

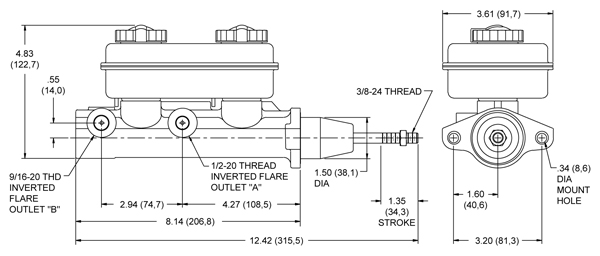

Master Cylinder Dimensions

Wilwood Tandem Master Cylinder Drawing Wilwood Tandem Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 12.42"
Flange to End Length (in) 8.14"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 1/2-20 IF
Outlet Fit 1 (in) 1/2-20 to 3/16 Tube Nut
Outlet Size 2 (in) 9/16-20 IF
Outlet Fit 2 (in) 9/16-20 to 3/16 Tube Nut
Additional Notes
