MasterCylinder No: 260-5920

Call (805) 388-1188
Combination Remote Master Cylinder
Prod #: 260-5920
Price: $80.99

Master Cylinder Dimensions
Bore Size 13/16"
Area (in²) 0.52
Stroke 1.1
Volume (cu in) 0.57
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Bare
Reservoir
Res Type Remote
Res Size (oz) 10.7 or 4.0
Res Size(cu in) 19.3 or 7.2
Rate
UPC Number
UPC 889545067798
Product Documents
Rebuild Kit Product Data Sheet


260-5921 Click To Download

Combination Remote Master Cylinder - Product Summary

Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.

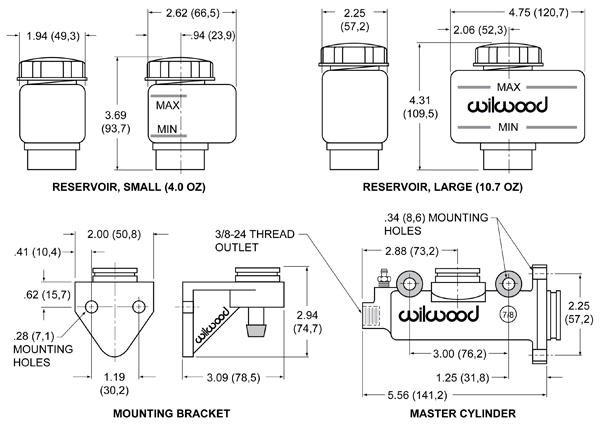

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in) 9.87"
Flange to End Length (in) 5.56"
Inlet Size (in) 1.35"
Inlet Fit (in) 3/8" Hose
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
