MasterCylinder No: 260-6766


Call (805) 388-1188
High Volume Master Cylinder
Prod #: 260-6766
Price: $58.28

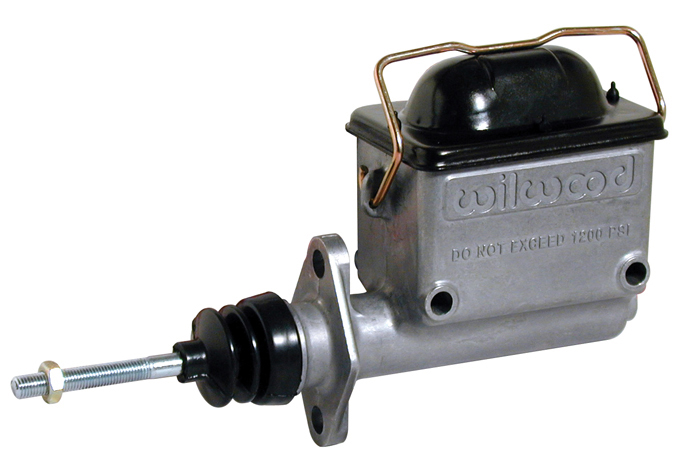

Wilwood High Volume Master Cylinder Wilwood High Volume Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 1.00"
Area (in²) 0.780
Stroke 1.43
Volume (cu in) 1.11
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Steel
Finish Bare
Reservoir
Res Type Integral
Res Size (oz) 8.2
Res Size(cu in) 14.80
Rate
UPC Number
UPC 889545067873
Product Documents

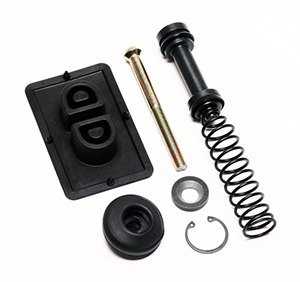

Rebuild Kit Product Data Sheet


260-6900 Click To Download

High Volume Master Cylinder - Product Summary

Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. . With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.







Master Cylinder Dimensions

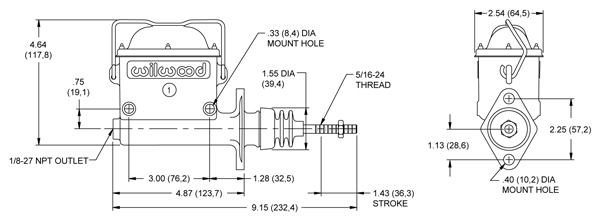

Wilwood High Volume Master Cylinder Drawing Wilwood High Volume Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 9.15"
Flange to End Length (in) 4.87"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 1/8-27 NPT
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
