MasterCylinder No: 260-7563


Call (805) 388-1188
Tandem Remote Master Cylinder
Prod #: 260-7563
Price: $203.50

Wilwood Tandem Remote Master Cylinder Wilwood Tandem Remote Master Cylinder Zoom Image

Master Cylinder Dimensions
Bore Size 1.00"
Area (in²) 0.780
Stroke 1.10
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum / Plastic
Finish Bare
Reservoir
Res Type Remote
Res Size (oz) 4.0 / 4.0
Res Size(cu in) 7.2 / 7.2
Rate
UPC Number
UPC 889545067910
Product Documents
Rebuild Kit Product Data Sheet


260-13366 Click To Download

Tandem Remote Master Cylinder - Product Summary

Wilwood’s Remote Tandem master cylinders provide one of the safest ways to actuate four wheel or dual caliper axle brake systems. The cylinder features 50/50 output from a 1.00" bore with 1.10" stroke. This master cylinder can be bolted directly to Wilwood's single mount pedals. The kit is shipped complete with the master cylinder, 4 ounce reservoirs, remote brackets and 3.38" x 5/16-24 pushrod. Reservoirs can be direct mounted or remote mounted using the include bracket assemblies. 260-7563 also includes 2 additional 3/8" x 30" fluid resistant hoses for remote mounting.

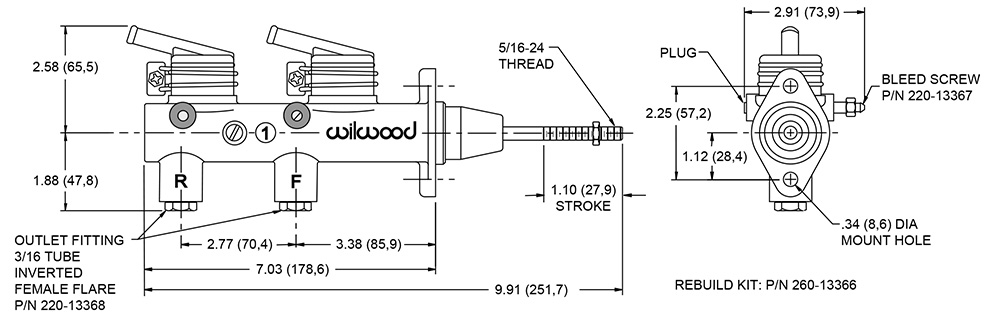

Master Cylinder Dimensions

Wilwood Tandem Remote Master Cylinder Drawing Wilwood Tandem Remote Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 9.88
Flange to End Length (in) 7.03"
Inlet Size (in) 1.35"
Inlet Fit (in) 3/8" Hose
Outlet Size 1 (in) 15mm x 1.00
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in) 15mm x 1.00
Outlet Fit 2 (in) 3/8-24 IF Female
Additional Notes
