MasterCylinder No: 261-13626


Call (805) 388-1188
Aluminum Tandem M/C Kit with Bracket and Valve
Prod #: 261-13626
Price: $335.96

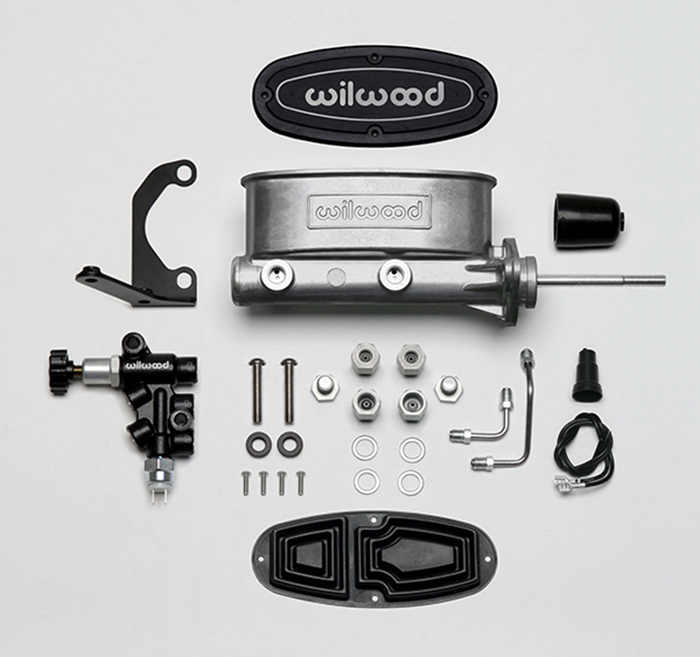

Wilwood Aluminum Tandem M/C Kit with Bracket and Valve Wilwood Aluminum Tandem M/C Kit with Bracket and Valve Zoom Image

Master Cylinder Dimensions
Bore Size 15/16"
Area (in²) 0.690
Stroke 1.10
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum
Finish Bare
Reservoir
Res Type Integral
Res Size (oz) 8.0 / 4.8
Res Size(cu in) 14.4 / 8.7
Rate
UPC Number
UPC 889545068191
Product Documents
Rebuild Kit Product Data Sheet

Call for info
(805) 388-1188

Click To Download

Aluminum Tandem M/C Kit with Bracket and Valve - Product Summary

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in four bores sizes, 7/8”, 15/16", 1.00” or 1-1/8”, and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.





Master Cylinder Dimensions

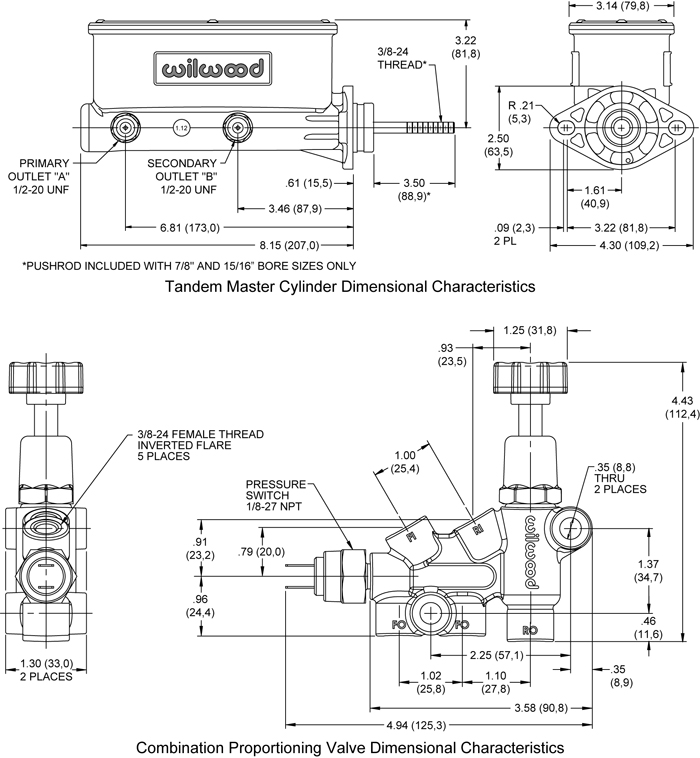

Wilwood Aluminum Tandem M/C Kit with Bracket and Valve Drawing Wilwood Aluminum Tandem M/C Kit with Bracket and Valve Drawing Zoom Image
Additional Dimensions
Overall Length(in) 12.26"
Flange to End Length (in) 8.15"
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) 1/2-20
Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF
Outlet Size 2 (in) 1/2-20
Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF
Additional Notes
