MasterCylinder No: 261-14249-BK


Call (805) 388-1188
Remote Tandem M/C Kit w/Pushrod, Bracket and Valve
Prod #: 261-14249-BK
Price: $461.92

Wilwood Remote Tandem M/C Kit w/Pushrod, Bracket and Valve Wilwood Remote Tandem M/C Kit w/Pushrod, Bracket and Valve Zoom Image

Master Cylinder Dimensions
Bore Size 7/8"
Area (in²) 0.600
Stroke
Volume (cu in)
Master Cylinder Description
Type Tandem Outlet
Outlets 2
Material Aluminum / Plastic
Finish Black E-coat
Reservoir
Res Type Remote
Res Size (oz) 7.0 / 7.0
Res Size(cu in) 12.6 / 12.6
Rate
UPC Number
UPC 889545078206
Product Documents
Rebuild Kit Product Data Sheet

Call for info
(805) 388-1188

Click To Download

Remote Tandem M/C Kit w/Pushrod, Bracket and Valve - Product Summary

Wilwood has packaged the pushrod equipped Remote Tandem Chamber Master Cylinder in a kit with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware. Wilwood's Tandem Master Cylinders represents the latest in refinement in brake pressure actuation and fluid control. The included captured pushrod is for manual brake equipped cars or conversions. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22” to 3.40” on center studs. Kit includes two 7 oz. fluid reservoirs, clamps, brackets, and hoses for direct or remote mounting. The Combination Proportioning Valve substantially simplifies wiring and brake proportioning, incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Simply connect the fluid lines, bleed the system, and you're finished.





Master Cylinder Dimensions

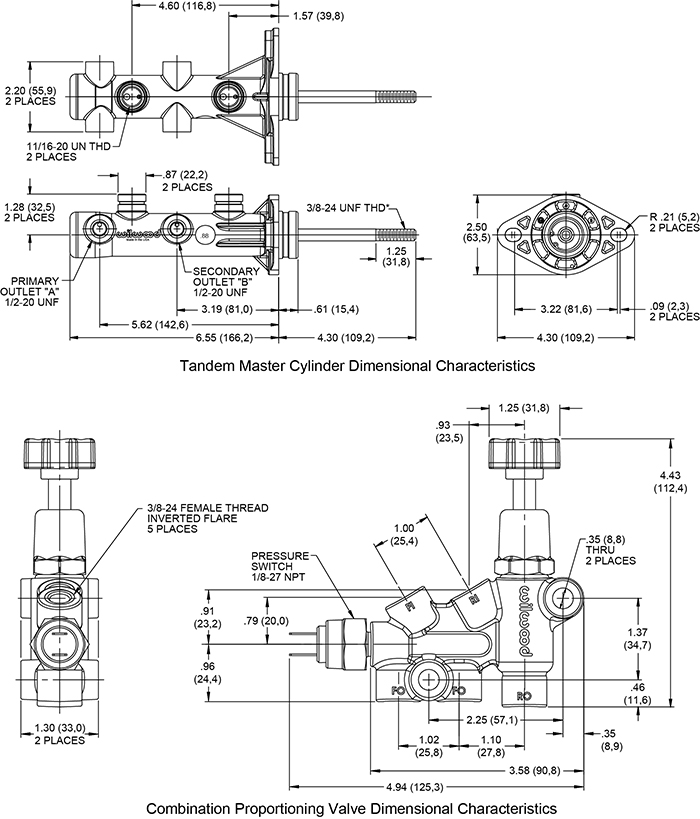

Wilwood Remote Tandem M/C Kit w/Pushrod, Bracket and Valve Drawing Wilwood Remote Tandem M/C Kit w/Pushrod, Bracket and Valve Drawing Zoom Image
Additional Dimensions
Overall Length(in) 10.76"
Flange to End Length (in) 6.56"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in) 1/4" Hose
Outlet Size 1 (in) 1/2-20
Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF
Outlet Size 2 (in) 1/2-20
Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF
Additional Notes
