Super Alloy Rotors – Part No: 160-10717

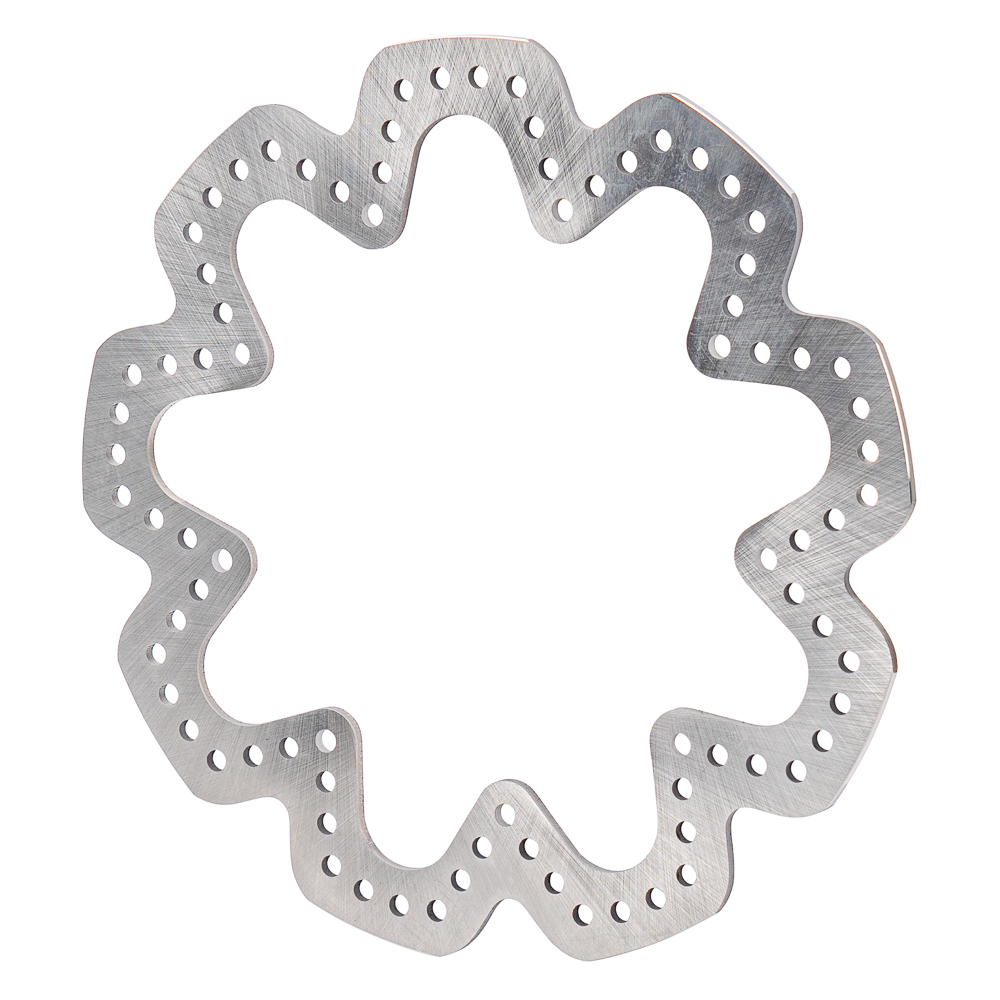

Super Alloy Scalloped Rotor
Prod #:
160-10717
Price:
$219.16
Super Alloy Scalloped Rotor – Product Summary
| Rotor Dimensions |
| Width (in) |
0.16 |
| Diameter (in) |
10.50 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Super Alloy |
| Vane Count |
Solid |
| Weight(Lbs) |
1.40 |
| Rotor Style & Finish |
| Type |
Alloy Scalloped |
| Style |
Drilled |
| Surface Finish |
Plain |
| Rotor Upgrades |
| Bedded |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545037760 |
160-10717 – Product Description
Super Alloy Scalloped Rotor
Super Alloy Steel 10.50” x .16” Solid Rotors are one of Sprint racing's lightest rotor at a weight of only 1.40 pounds. Wilwood’s proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or aluminum rotors. A Drilled and scalloped design provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures.. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
|
Performance Characteristics
|
• Dirt Sprint car L/F or R/R use
• Designed for specific dirt racing applications and may be unsuitable for other forms of racing.
• Substitute for 160-10718
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
9 x 7.00 |
| Rotor Mount Hole Size (in) |
0.266 |
| Lug ID / Registration (in) |
6.50 |
| Far Side Inside Diameter (in) |
|
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
|
