GT Rotors – Part No: 160-16925

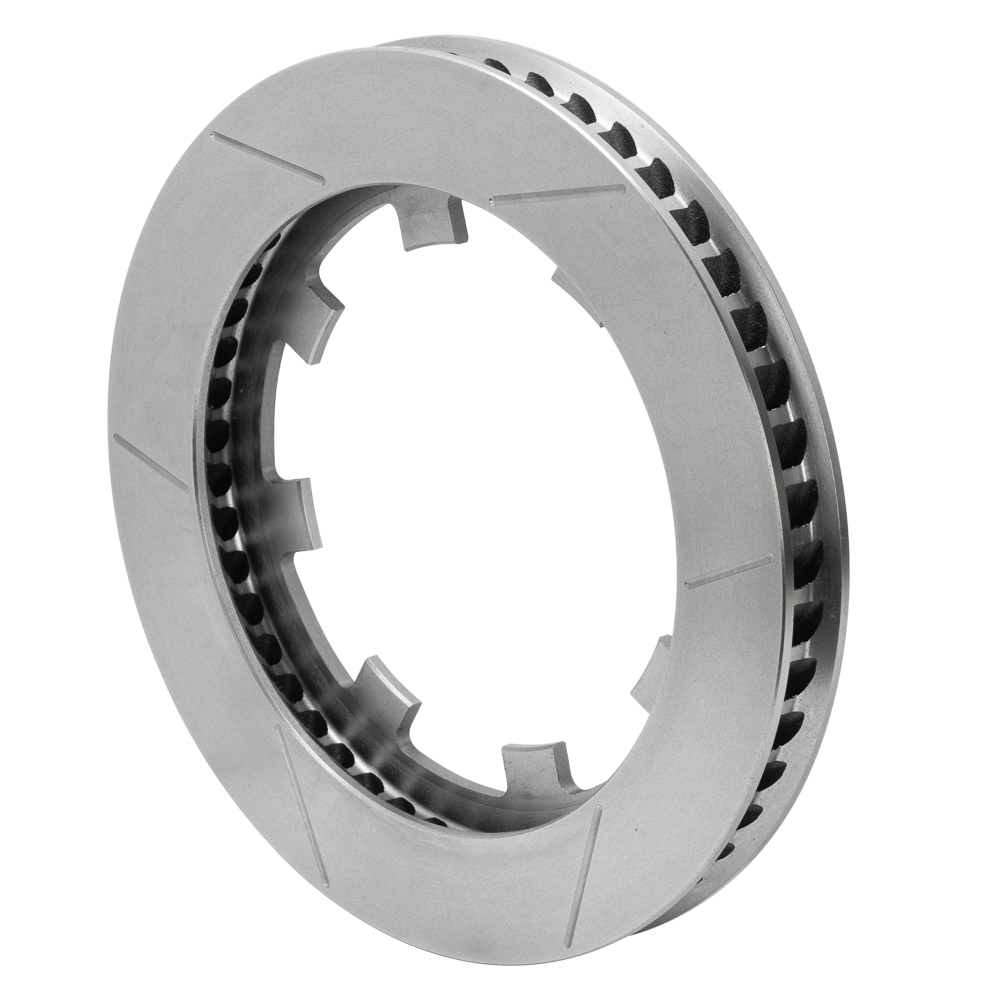

GT 48 Curved Vane Rotor
Prod #:
160-16925
Price:
$254.08
Available Rotor #160-16925 Configurations
Available Rotor #160-16925 Configurations
GT 48 Curved Vane Rotor – Product Summary
|
Rotor Dimension Diagram
|
GT 48 Curved Vane Rotor Dimension Diagram
![]()
Click Image to Close
|
| Rotor Dimensions |
| Width (in) |
1.25 |
| Diameter (in) |
11.75 |
| Mount Side |
L/H |
| Rotor Design |
| Material |
Iron |
| Vane Count |
48 CV |
| Weight(Lbs) |
11.12 |
| Rotor Style & Finish |
| Type |
GT |
| Style |
GT Slotted |
| Surface Finish |
Plain |
| Rotor Upgrades |
| Bedded |
No |
| Balanced |
- |
| UPC Number |
| UPC |
889545106596 |
160-16925 – Product Description
GT 48 Curved Vane Rotor
Wilwood’s GT 48 Curved Vane Dynamic Lug Mount Rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. Combined with our proven GT Series asymmetrical face slot pattern, individual dynamic balancing and dynamic lug mounting you are assured the smoothest, vibration free performance at any speed.
|
Performance Characteristics
|
• Premium grade Iron, Heavy Wall Castings
• Suitable for High temperature racing to street use.
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
8 x 7.18L |
| Rotor Mount Hole Size (in) |
Lug |
| Lug ID / Registration (in) |
6.53 |
| Far Side Inside Diameter (in) |
8.34 |
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
|
