Solid Iron Rotor
Prod #: 160-17386
Price: $135.74

Solid Iron Rotor – Product Summary
Rotor No: 160-17386

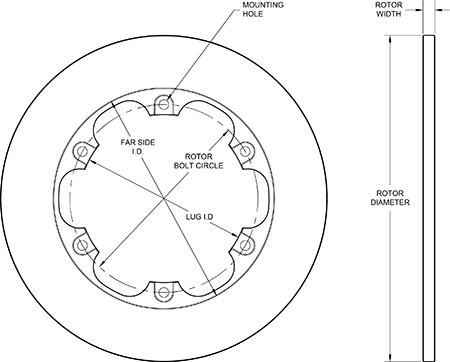

Rotor Dimension Diagram
Solid Iron Rotor Dimension Diagram Solid Iron Rotor Dimension Diagram

Rotor Dimensions
Width (in) 0.39
Diameter (in) 10.85
Mount Side Non_Direct
Rotor Design
Material Iron
Vane Count Solid
Weight(Lbs) 6.45
Rotor Style & Finish
Type Solid
Style Plain Face
Surface Finish Plain
Rotor Upgrades
Burnished No
Balanced No
UPC Number
UPC 889545112948
160-17386 – Product Description

Solid Iron Rotor

Solid Iron rotors have applications in all types of motorsports. Iron Rotors rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from the rear hard stopping road course car or the rear of a dual purpose street and road car. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads. Available in either a Plain face or GT Grooved face in a plain finish or SRP directional drilled surface and finished in a black e-coat protective coating.


Performance Characteristics
• Suitable applications: Street & Moderate Road course





Additional Rotor Dimensions

Rotor Bolt Circle (in) 6 x 6.25
Rotor Mount Hole Size (in) 0.316
Lug ID / Registration (in) 5.59
Far Side Inside Diameter (in) 7.36
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in
Stud Diameter (in)
Face Thickness (in)
