Solid Iron Rotors – Part No: 160-17513-BK
SRP Solid Iron Rotor
Prod #:
160-17513-BK
Price:
$234.90
Available Rotor #160-17513 Configurations
Available Rotor #160-17513 Configurations
SRP Solid Iron Rotor – Product Summary
|

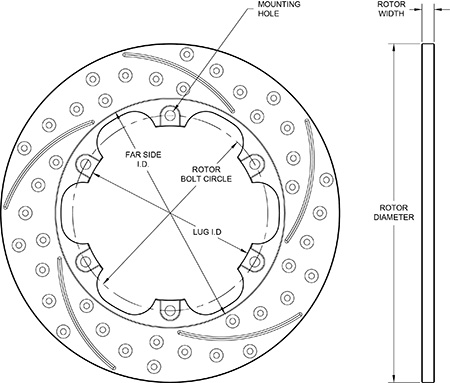

Rotor Dimension Diagram
|
SRP Solid Iron Rotor Dimension Diagram
Click Image to Close
|
| Rotor Dimensions |
| Width (in) |
0.39 |
| Diameter (in) |
10.85 |
| Mount Side |
R/H |
| Rotor Design |
| Material |
Iron |
| Vane Count |
Solid |
| Weight(Lbs) |
6.30 |
| Rotor Style & Finish |
| Type |
SRP-BLK |
| Style |
SRP Drilled & Slotted |
| Surface Finish |
Black Electro Coat |
| Rotor Upgrades |
| Burnished |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545113457 |
160-17513-BK – Product Description
SRP Solid Iron Rotor
Solid Iron rotors have applications in all types of motorsports. Iron Rotors rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from the rear hard stopping road course car or the rear of a dual purpose street and road car. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads. Available in either a Plain face or GT Grooved face in a plain finish or SRP directional drilled surface and finished in a black e-coat protective coating.
|
Performance Characteristics
|
• Suitable applications: Street & Moderate Road course
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
6 x 6.25 |
| Rotor Mount Hole Size (in) |
0.316 |
| Lug ID / Registration (in) |
5.59 |
| Far Side Inside Diameter (in) |
7.36 |
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
|
