Steel Rotors – Part No: 160-17945

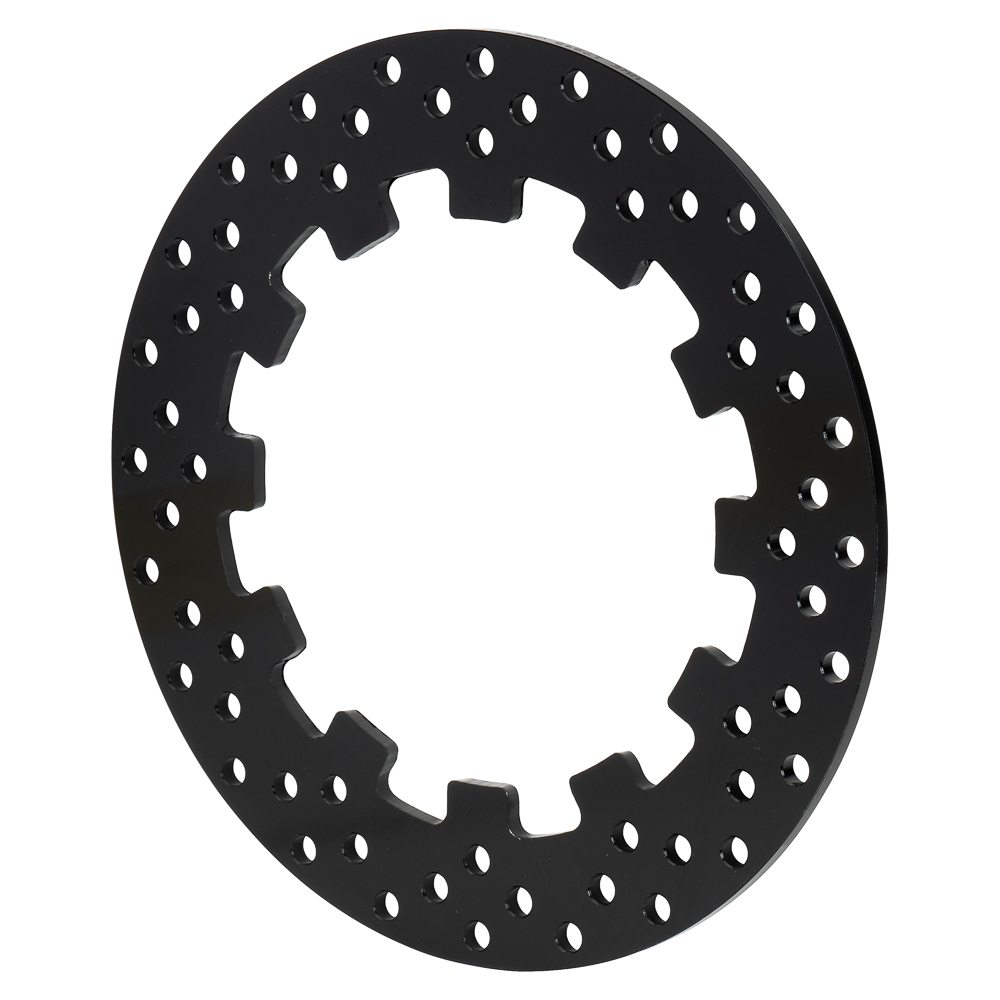

Drilled Steel Rotor
Prod #:
160-17945
Price:
$197.92
Drilled Steel Rotor – Product Summary
|
Rotor Dimension Diagram
|
Drilled Steel Rotor Dimension Diagram
![]()
Click Image to Close
|
| Rotor Dimensions |
| Width (in) |
0.25 |
| Diameter (in) |
11.60 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Steel |
| Vane Count |
Solid |
| Weight(Lbs) |
4.77 |
| Rotor Style & Finish |
| Type |
Solid |
| Style |
Drilled |
| Surface Finish |
Black Electro Coat |
| Rotor Upgrades |
| Bedded |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545120677 |
160-17945 – Product Description
Drilled Steel Rotor
Wilwood's Alloy Steel Rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This specific part is a dynamically lug mounted with special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.
|
Performance Characteristics
|
• Suitable applications: UTV
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
12 x 7.77L |
| Rotor Mount Hole Size (in) |
Lug |
| Lug ID / Registration (in) |
7.09 |
| Far Side Inside Diameter (in) |
|
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
|
