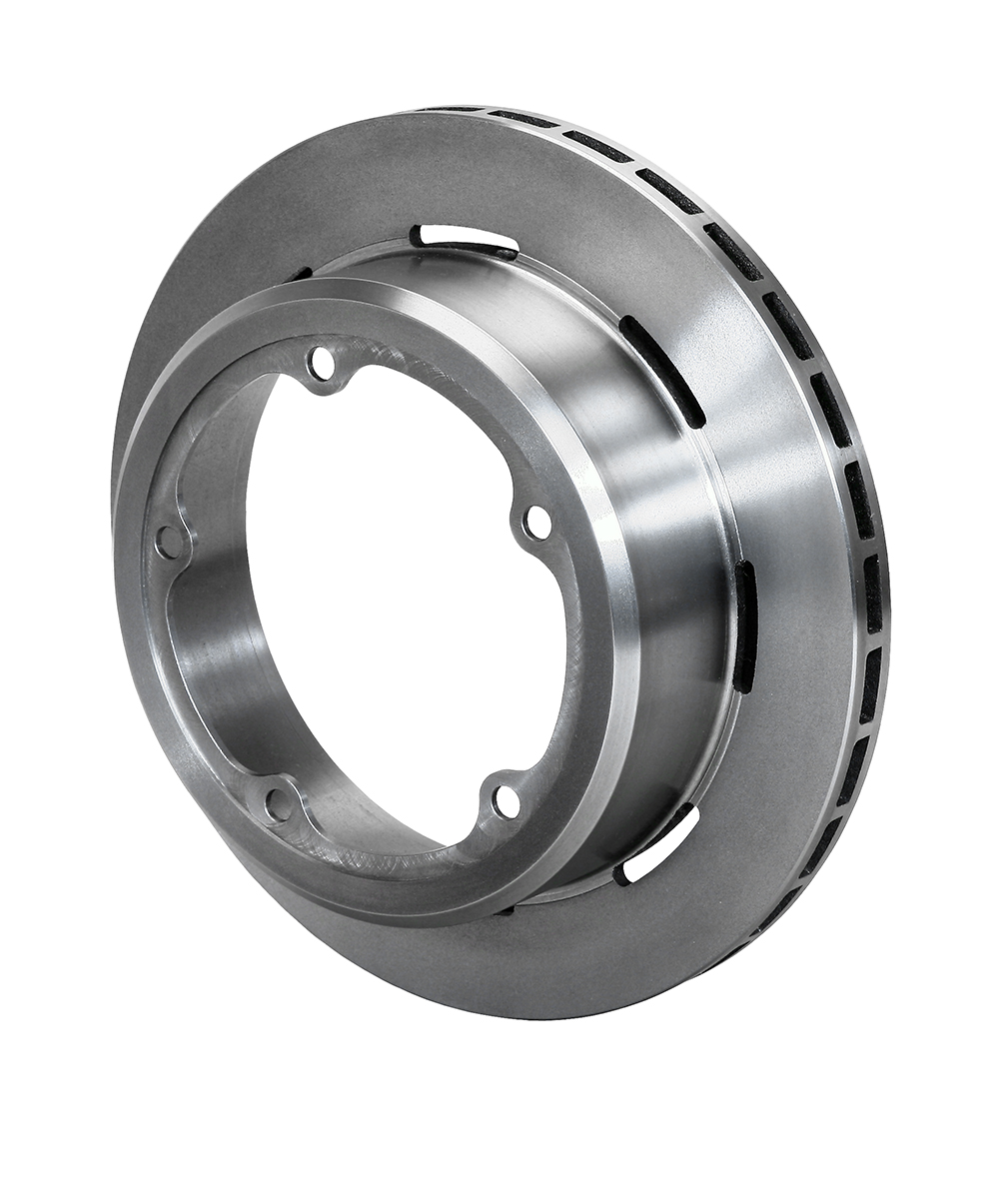

Ultralite HP 32 Vane Rotor & Hat
Prod #: 160-13953
Price: $346.41

Ultralite HP 32 Vane Rotor & Hat – Product Summary
Rotor No: 160-13953

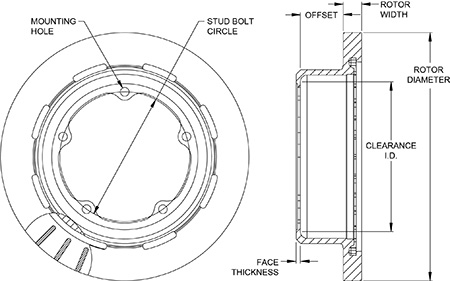

Rotor Dimension Diagram
Ultralite HP 32 Vane Rotor & Hat Dimension Diagram Ultralite HP 32 Vane Rotor & Hat Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.81
Diameter (in) 11.00
Mount Side
Rotor Design
Material Iron
Vane Count 32 V
Weight(Lbs) 11.10
Rotor Style & Finish
Style Plain Face
Surface Finish Plain
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545072303
160-13953 – Product Description

Ultralite HP 32 Vane Rotor & Hat

HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.

Performance Characteristics
• Rear brake rotor for 11.00" Low-Profile disc/drum internal parking brake kits.
• Rear brake rotor for Strange style floating hub rear ends.

Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in) 5.00
Far Side Inside Diameter (in) 8.38
Offset Dimension (in) 1.910

Shoe Inside Dimension (in) 7.24
Clearance Inside Diameter (in) 7.16
Wheel Bolt Circle (in 5 x 5.75
Stud Diameter (in) 0.38
Face Thickness (in) 0.18
