Super Alloy Rotors – Part No: 160-14185
Call (805) 388-1188
Super Alloy Slotted Rotor
Prod #: 160-14185
Price: $447.40

Super Alloy Slotted Rotor – Product Summary
Rotor No: 160-14185

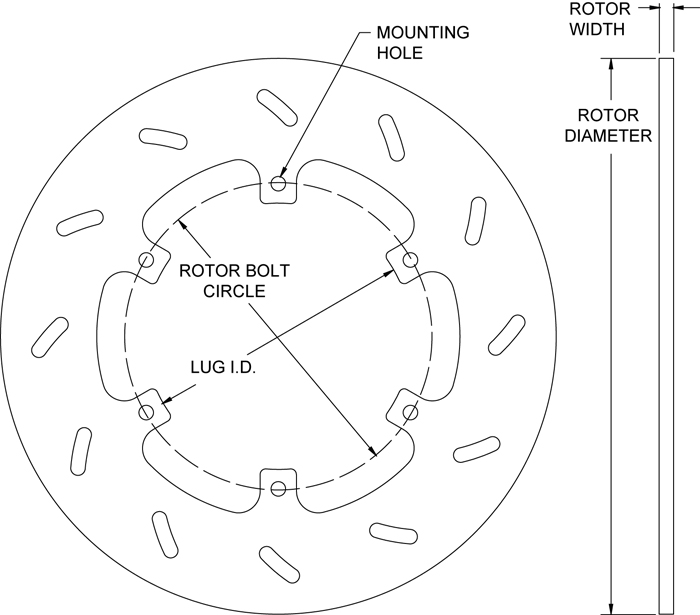

Rotor Dimensions
Width (in) 0.25
Diameter (in) 9.56
Mount Side
Rotor Design
Material Titanium
Vane Count Solid
Weight(Lbs) 3
Rotor Style & Finish
Type Alloy Solid
Style Slotted
Surface Finish Plain
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545077421
160-14185 – Product Description

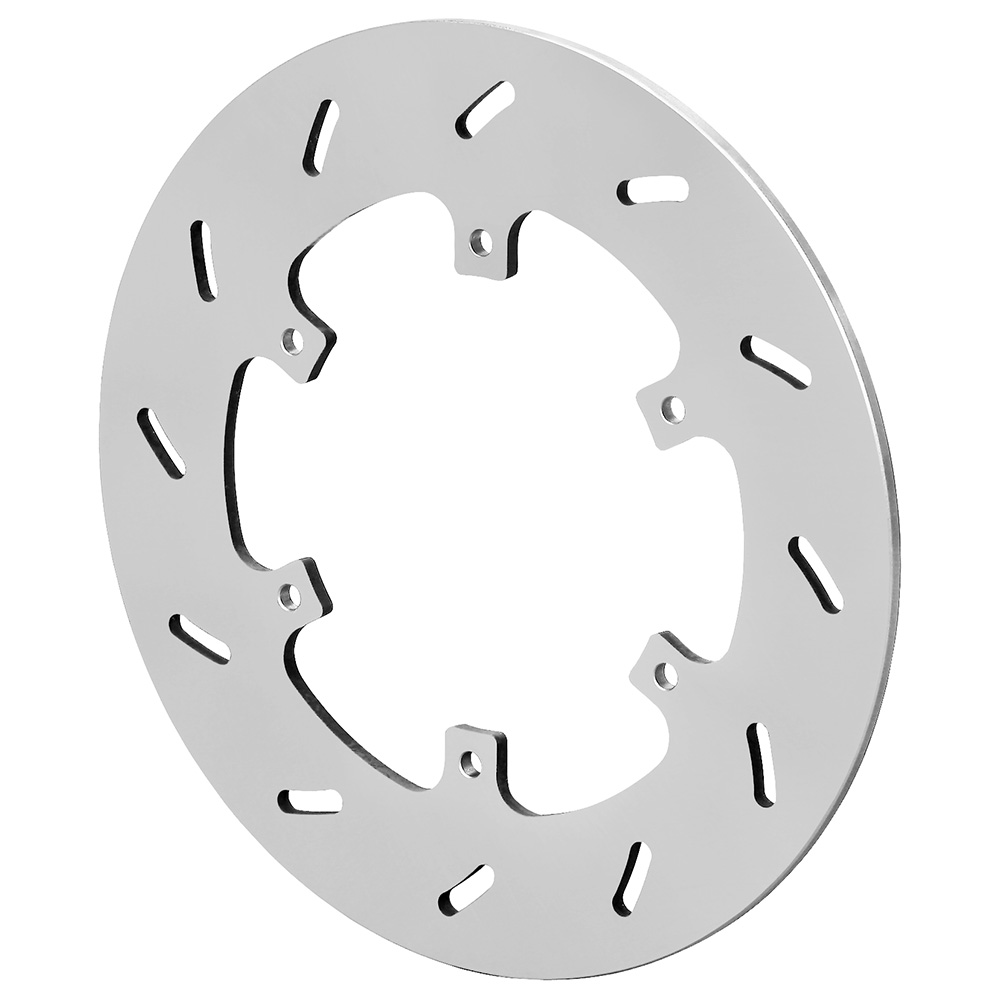

Super Alloy Slotted Rotor

Super Alloy Titanium Slotted Rotors are Sprint racing's lightest rotors at a weight of between 2.8 to 3 pounds. Wilwood’s proprietary Super Alloy Titanium greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A directional slotted surface allowing for full pad contact. This provides excellent high temperature stability, with rapid heat dissipation and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.

Performance Characteristics
• Dirt Sprint Car Inboard Use
• Recommended Brake Pads: BP40 and CM (Sintered Metallic) compounds.
• Designed for specific dirt racing applications and may be unsuitable for other forms of racing.

Additional Rotor Dimensions

Rotor Bolt Circle (in) 6 x 5.25
Rotor Mount Hole Size (in) 0.250
Lug ID / Registration (in) 4.76
Far Side Inside Diameter (in)
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in
Stud Diameter (in)
Face Thickness (in)
