HP Hub & Rotor – Part No: 160-14322
Call (805) 388-1188
HP Hub & Rotor
Prod #: 160-14322
Price: $164.49

HP Hub & Rotor – Product Summary
Rotor No: 160-14322

Rotor Dimension Diagram
HP Hub & Rotor Dimension Diagram HP Hub & Rotor Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.94
Diameter (in) 11.29
Mount Side
Rotor Design
Material Iron
Vane Count Vented
Weight(Lbs) 23.70
Rotor Style & Finish
Style Plain Face
Surface Finish Plain
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545079333
160-14322 – Product Description

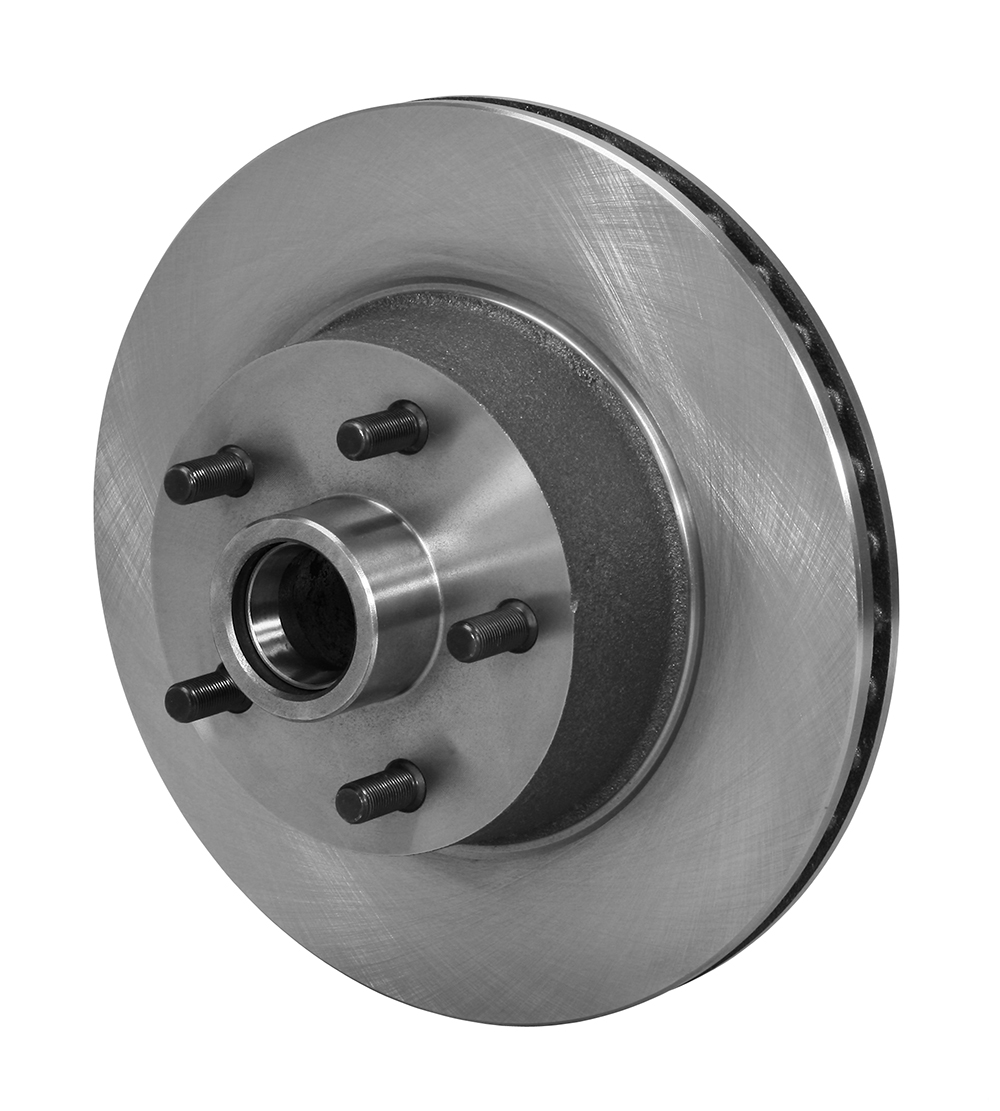

HP Hub & Rotor

Wilwood’s OEM style hub and rotor assemblies. These rotors were designed utilizing the latest developments in iron formulation technology using our proprietary blend ferrous alloy to bring you the strongest, lightweight, most dependable rotor available in the market place. The rotors are new castings, not reworked parts and our tolerances are held to the high standards you have come to expect from Wilwood Engineering. Designed as a cost effective alternative to our standard three piece hub and rotor assemblies, it also lends further utility to kit designs.

Performance Characteristics
• 70-73 Mustang

Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in)
Far Side Inside Diameter (in) 7.35
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in 5 X 4.50
Stud Diameter (in) 0.5
Face Thickness (in)
