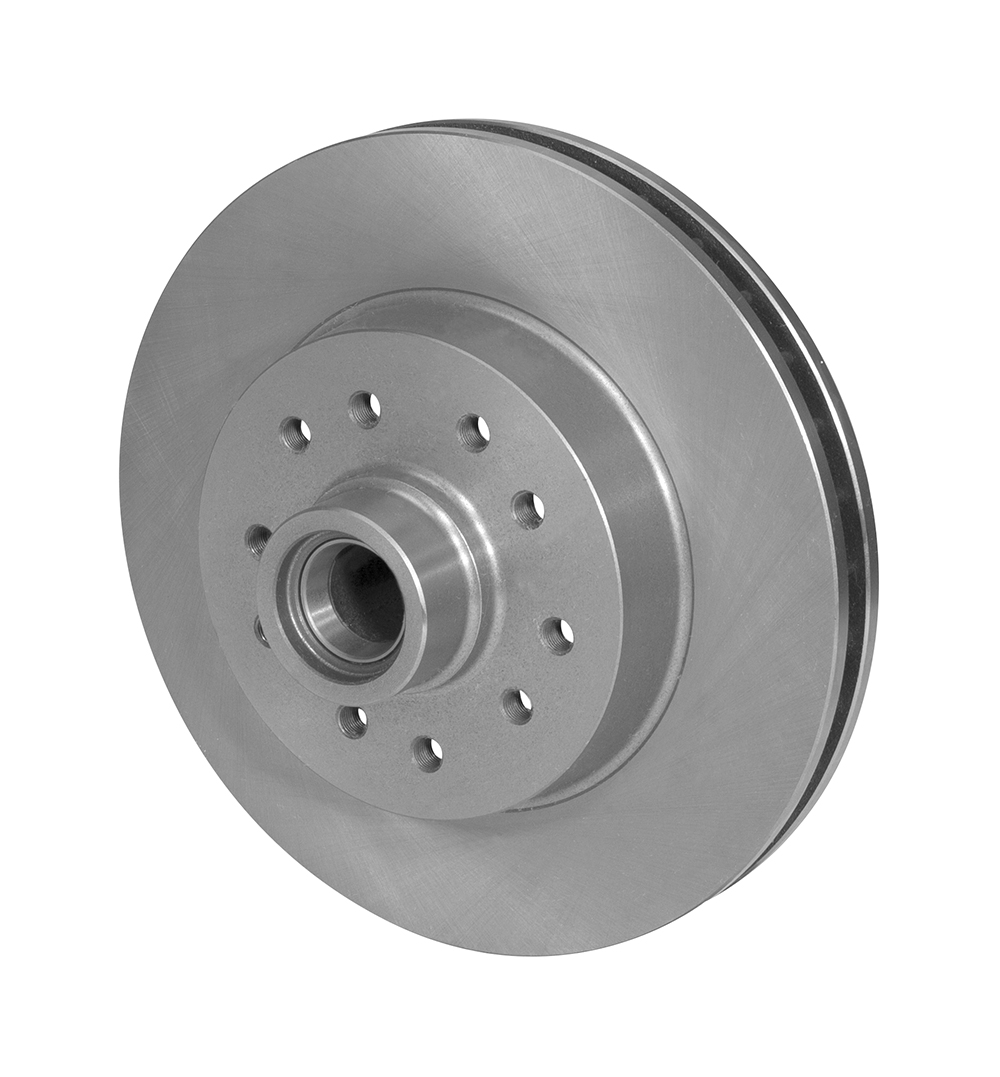

HP Hub & Rotor – Part No: 160-14379
HP Hub & Rotor
Prod #:
160-14379
Price:
$214.30
HP Hub & Rotor – Product Summary
| Rotor Dimensions |
| Width (in) |
1.25 |
| Diameter (in) |
11.86 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Iron |
| Vane Count |
Vented |
| Weight(Lbs) |
28.75 |
| Rotor Style & Finish |
| Type |
ULHP |
| Style |
Plain Face |
| Surface Finish |
Plain |
| Rotor Upgrades |
| Bedded |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545079760 |
160-14379 – Product Description
HP Hub & Rotor
Wilwood’s OEM style hub and rotor assemblies were designed utilizing the latest developments in iron formulation technology using our proprietary blend ferrous alloy to bring you the strongest, lightweight, most dependable rotor available in the market place. The rotors are new castings, not reworked parts and our tolerances are held to the high standards you have come to expect from Wilwood Engineering. Many have unique features like multiple bolt circles and screw in studs. Designed as a cost effective alternative to our standard three piece hub and rotor assemblies, which also lends further utility to kit designs.
|
Performance Characteristics
|
• 60-70 Chevrolet C10 Pickups
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
|
| Rotor Mount Hole Size (in) |
|
| Lug ID / Registration (in) |
|
| Far Side Inside Diameter (in) |
8.04 |
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
5 x 4.75/5.00 |
| Stud Diameter (in) |
0.5 |
| Face Thickness (in) |
|
