GT Rotors – Part No: 160-14563-GTB
Call (805) 388-1188

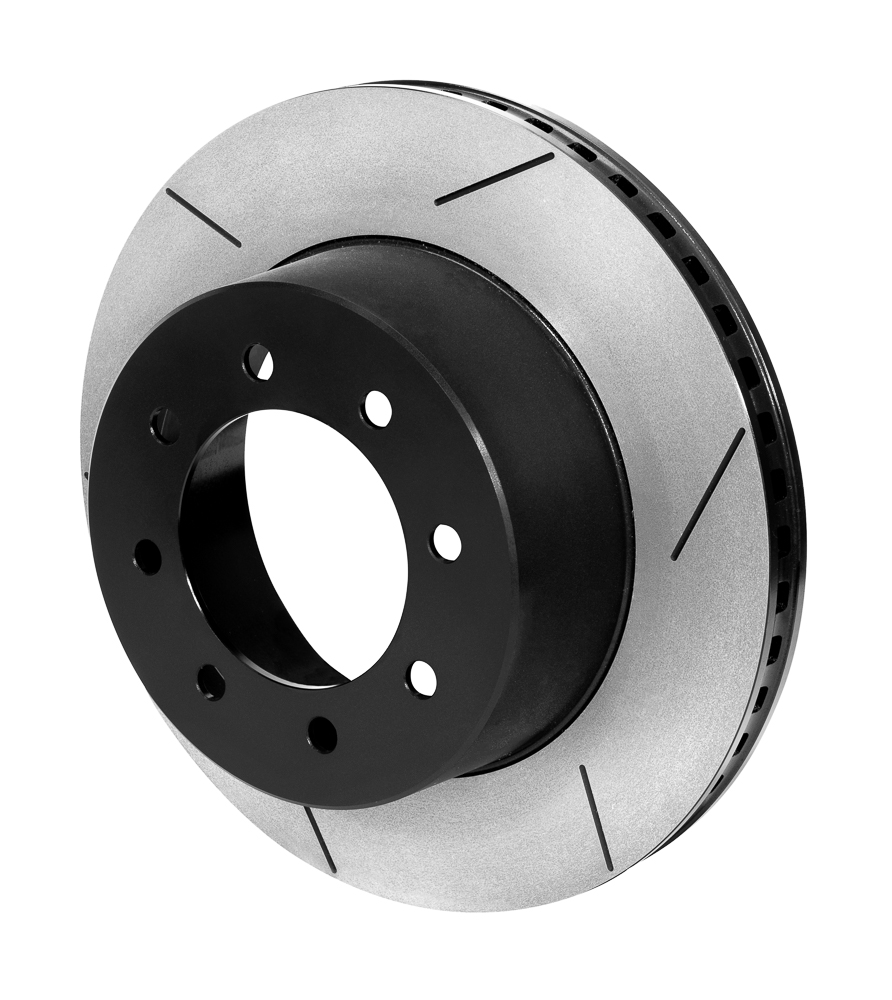

GT Vented Rotor & Hat
Prod #: 160-14563-GTB
Price: $253.43

GT Vented Rotor & Hat – Product Summary
Rotor No: 160-14563-GTB

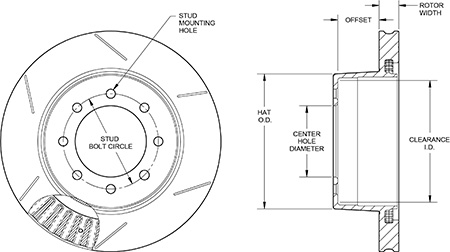

Rotor Dimension Diagram

Rotor Dimensions
Width (in) 1.38
Diameter (in) 15.50
Mount Side
Rotor Design
Material Iron
Vane Count 48 V
Weight(Lbs)
Rotor Style & Finish
Type GT-BLK
Style GT Slotted
Surface Finish Black Electro Coat
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545081633
160-14563-GTB – Product Description

GT Vented Rotor & Hat

GT Vented Rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.

Performance Characteristics






Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in) 5.01
Far Side Inside Diameter (in) 11.05
Offset Dimension (in) 2.920

Shoe Inside Dimension (in) 9.06
Clearance Inside Diameter (in) 7.99
Wheel Bolt Circle (in 8 x 6.69
Stud Diameter (in) 0.64
Face Thickness (in) 0.31
