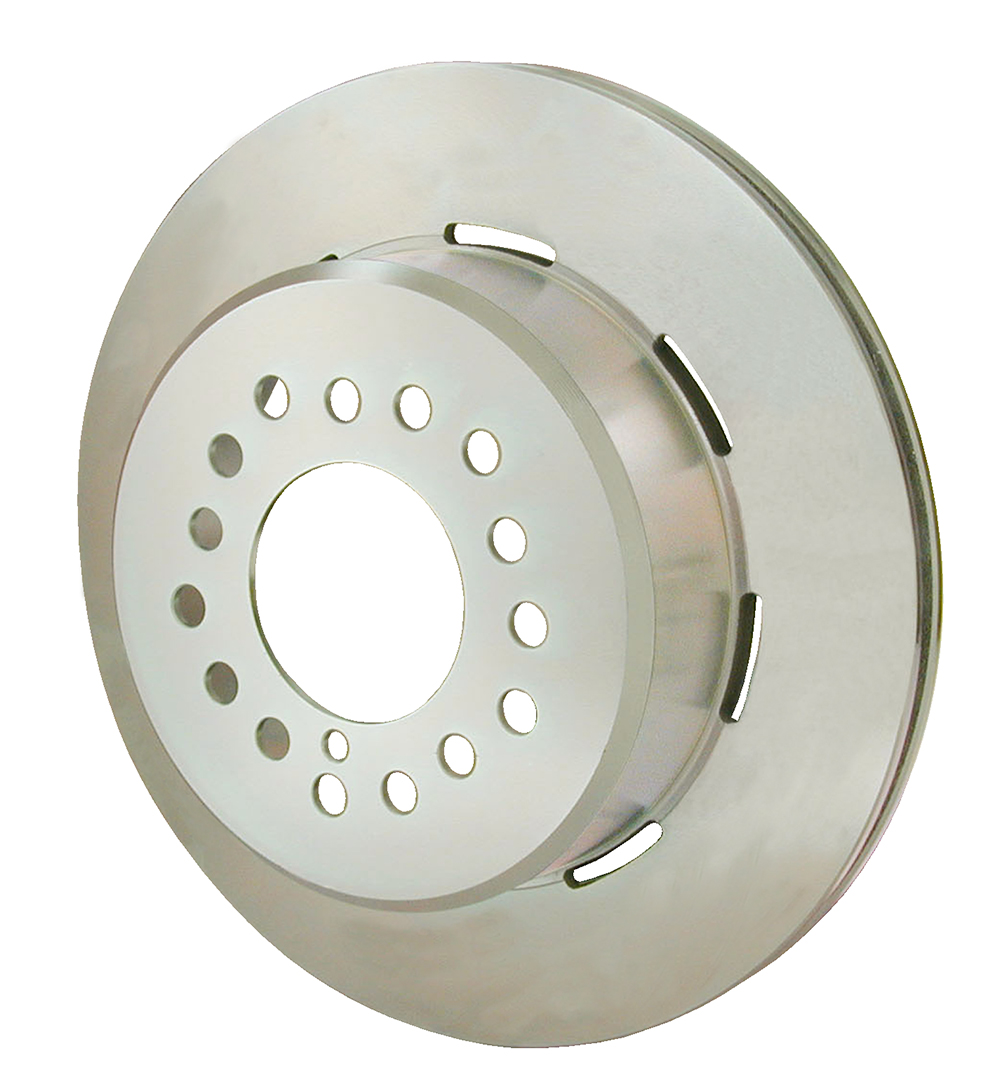

Ultralite HP 32 Vane Rotor & Hat
Prod #: 160-9986
Price: $240.73

Ultralite HP 32 Vane Rotor & Hat – Product Summary
Rotor No: 160-9986

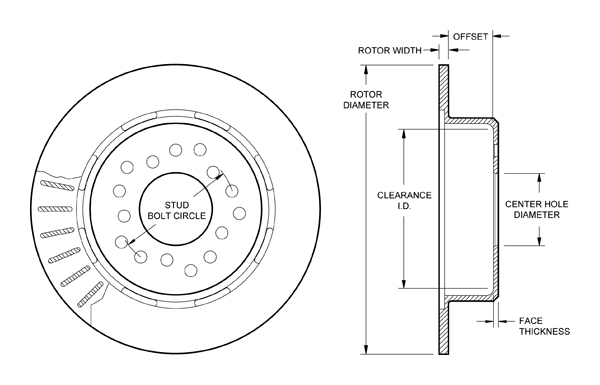

Rotor Dimension Diagram
Ultralite HP 32 Vane Rotor & Hat Dimension Diagram Ultralite HP 32 Vane Rotor & Hat Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.81
Diameter (in) 12.19
Mount Side
Rotor Design
Material Iron
Vane Count 32 V
Weight(Lbs) 14.40
Rotor Style & Finish
Style Plain Face
Surface Finish Plain
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545041170
160-9986 – Product Description

Ultralite HP 32 Vane Rotor & Hat

HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.

Performance Characteristics
• Rear brake rotor for disc/drum internal parking brake kits.

Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in) 3.06
Far Side Inside Diameter (in) 8.38
Offset Dimension (in) 2.320

Shoe Inside Dimension (in) 7.24
Clearance Inside Diameter (in) 7.16
Wheel Bolt Circle (in 5 x 4.50/4.75/5.00
Stud Diameter (in) 0.52
Face Thickness (in) 0.18

Additional Notes

Each rotor is precision machined to less than .001" tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. Long grain carbon iron is used for its superior thermal conductivity and stability properties that resist distortion and fatigue.

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
