74-78 Mustang II / 74-80 Pinto Mustang II ProSpindles
Call (805) 388-1188
Spindle – Part No: 830-10832
Prod #: 830-10832
Price: $235.72
Spindle – 830-10832

Product Description
Spindle Style: Stock Height
Material: Forged Steel
Finish: Black E-Coat
Spindle Description
Drop Dim: Stock Height
Side: L/H or R/H
Weight (lbs): 9.0
Mustang II ProSpindles - Product Summary
74-78 Mustang II / 74-80 Pinto
UPC Number
UPC 889545029932
Cautionary Info
Spindle (each). Can be used as L/H or R/H
Can only be used with Wilwood Brake Kits
Product Documents
Product Data Sheet

Click to View

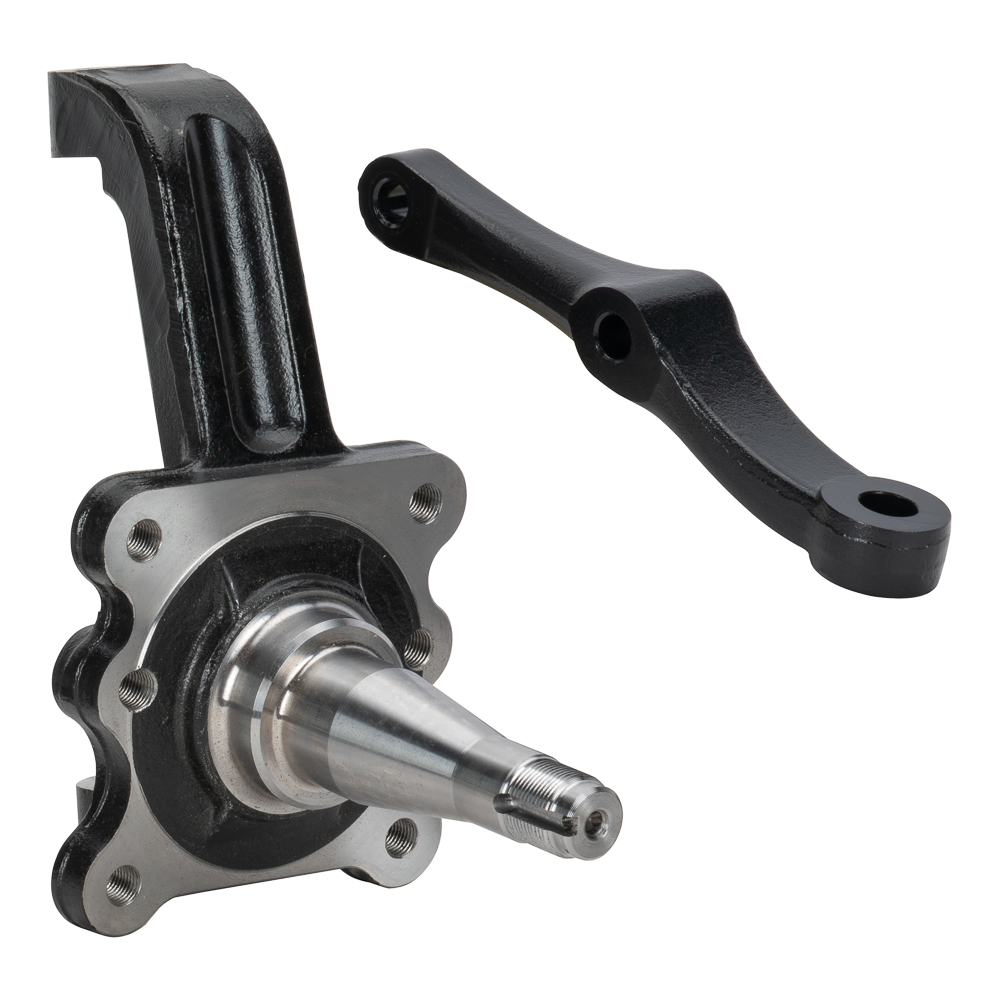

Wilwood’s ProSpindle is specifically designed for use in fabricated A-arm suspensions on kit cars, street rods, drag cars and other custom or race applications configured around Pinto/Mustang ll suspension geometry. A redesigned one-piece forged steel body uses common Pinto and Mustang ll tie rod ends, ball joints, wheel bearings and seals. It is lightweight yet nearly three times stronger than OE or aftermarket two-piece cast iron and steel replacement spindles.

The 2" dropped spindle pin provides the desired lowered ride height without disturbing the suspension geometry. Bolt-on steering arms are strong and can be reversed to accommodate rear steer configurations. They also allow the same spindle to be used on either side of a vehicle. Bolt-on caliper brackets attach to substantially reinforced mounting bosses on the spindle body for secure, deflection-free mounting of four or six piston calipers.

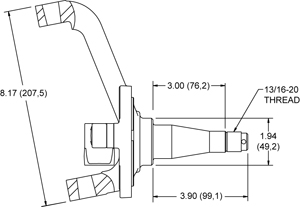

Spindle Dimensions

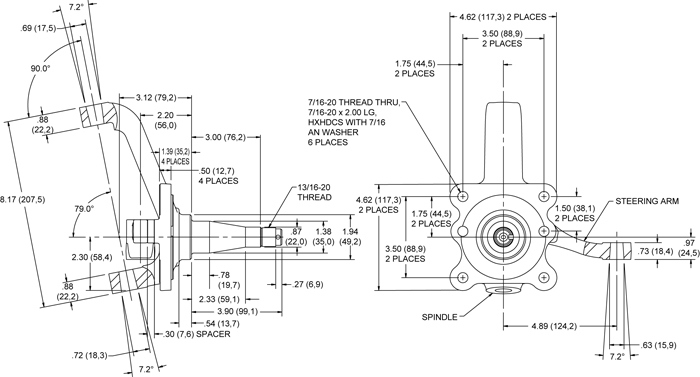

74-78 Mustang II / 74-80 Pinto Drawing 74-78 Mustang II / 74-80 Pinto Drawing Zoom Image
Additional Spindle Dimensions
Mount Length (in)
Spindle 1 Length (in)
Spindle 2 Length (in)
Additional Notes

Complete brake kits and components including forged billet hubs, bearings, seals, locknuts, calipers, brake pads, caliper brackets, and hats or rotor plates to attach optional rotor styles from 11.00" to 14.00" are all available to configure custom brake packages and complete the installation.
