Forged Superlite 4R Big Brake Front Brake Kit (Race)
Prod #: 140-10692
Price: $1,988.00

*NOTE: Brake Line Kit 220-6458 is included in this Brake Kit.
Front Brake Kit — 140-10692

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Nickel Plate
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15

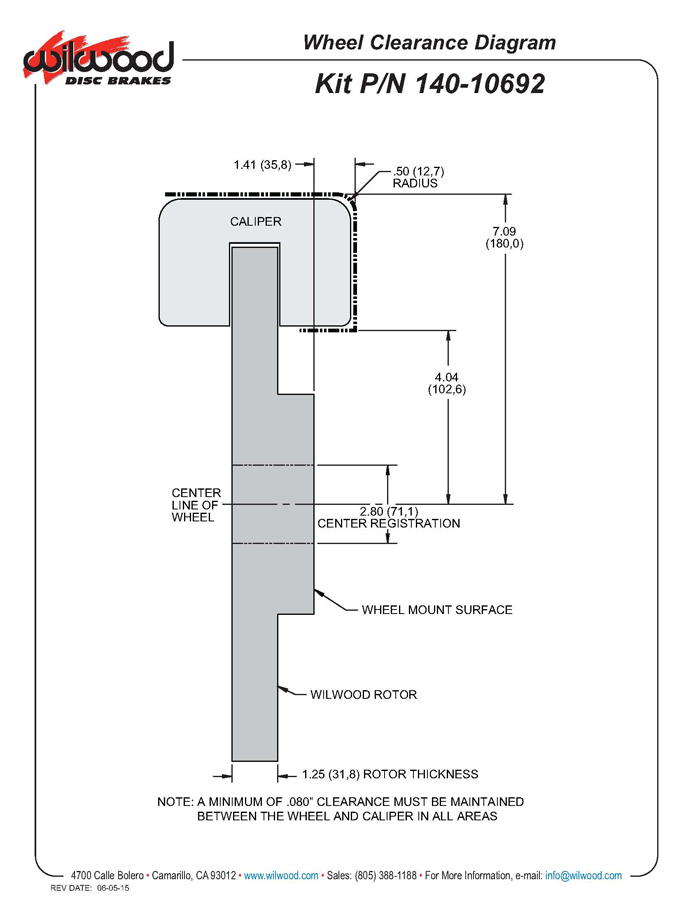

*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

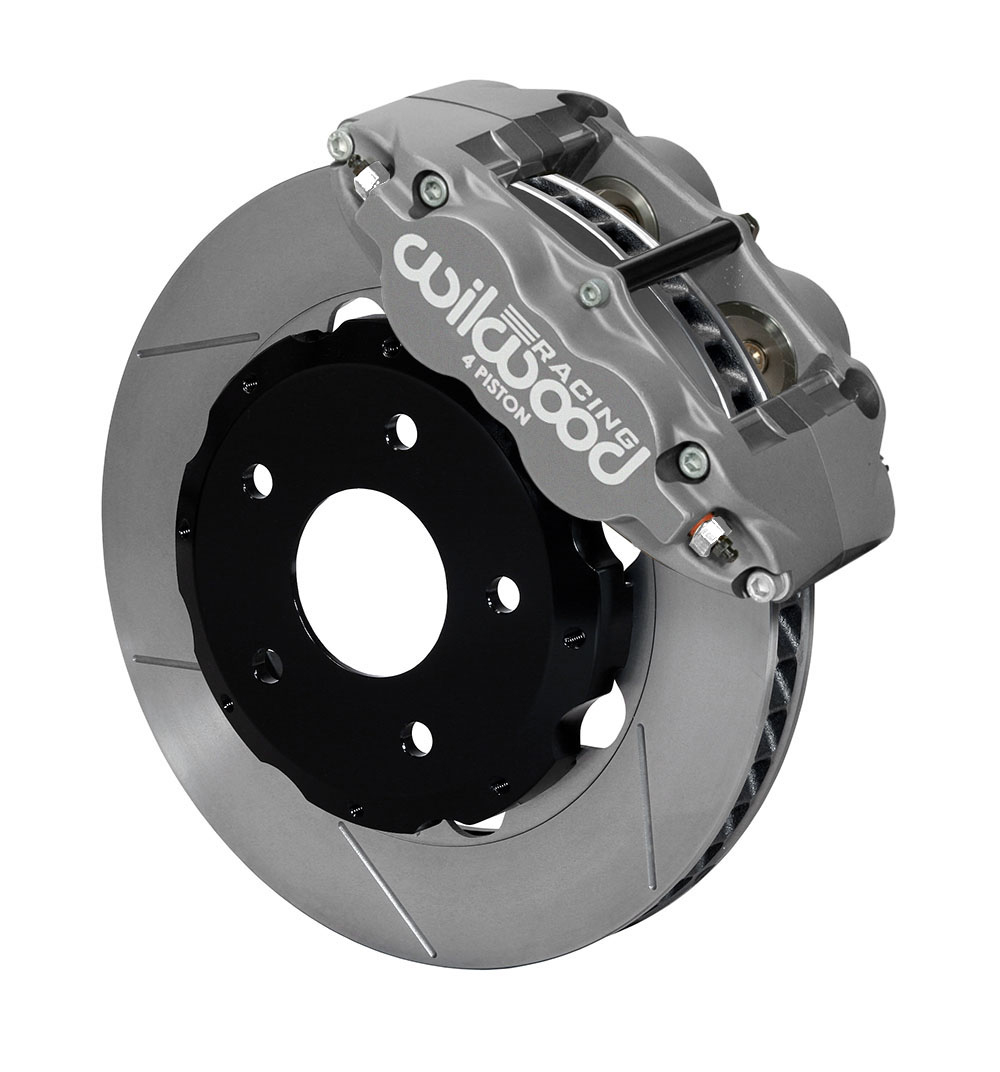

Forged Superlite 4R Big Brake Front Brake Kit (Race)

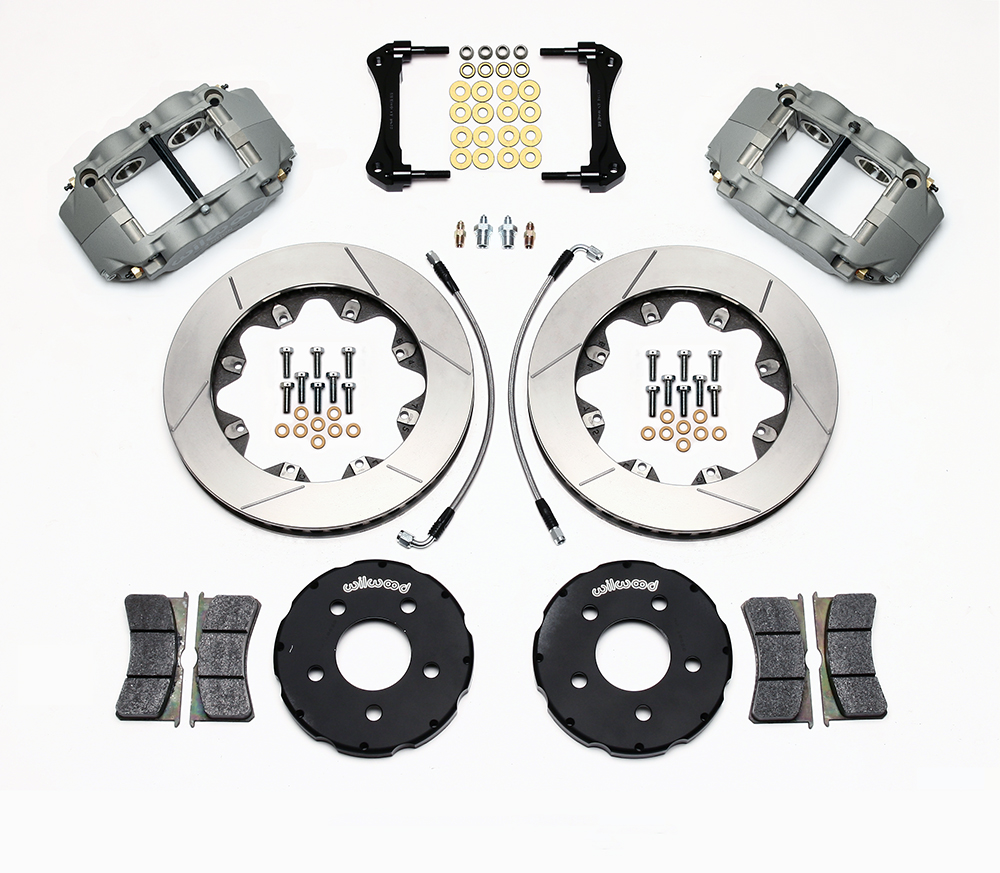

This kit is configured for dedicated road racing on all 1994-2004 Mustangs, or any 1993 and earlier Fox body that has been upgraded with the 1994-95 model SN95 spindles. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock® pistons and internal knock-back damping springs, are volume matched for system compatibility with either a factory vacuum power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders. The kit includes two-piece 12.19” diameter Spec 37 alloy GT series directional vane rotors to comply with SCCA American Sedan rules, cross-overs into the NASA pony car categories, or any other sanction racing with 16” or 17” wheels. Unsprung and rotating weight are minimized by mounting the rotors to the OE hubs with forged aluminum hats. Each kit includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flexlines, and all premium grade hardware.


Fitment & Installation Details

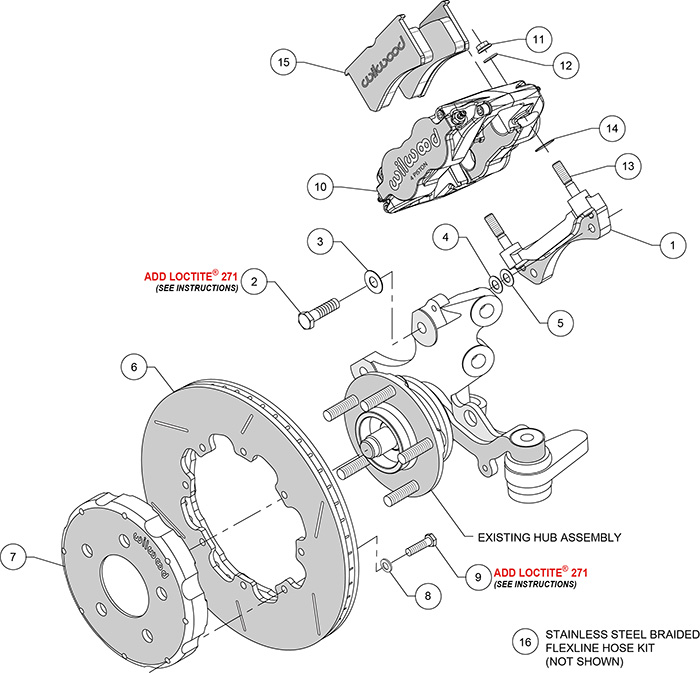

Forged Superlite 4R Big Brake Front Brake Kit (Race) Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Superlite 4R Big Brake Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13266-N
Right Hand - Part No: 120-13265-N
Type: Forged Superlite 4R
Finish Color: Nickel Plate
Piston Count: 4
Piston Area (In²): 4.84
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 7420
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 4.9
Pad Compound: PolyMatrix H
Rotors
Left Hand - Part No: 160-11840
Right Hand - Part No: 160-11839
Type: GT 48 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 12.19
Width (in): 1.25
Vane Count: 48 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
Rotor Hats
Hat - Part No: 170-10690
Type: Drag Hat - Shallow Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.65
Bolt Circle 1: 5 x 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.58
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5100
Replacement Dustboot: N-A
Replacement Piston 1: 200-7550
Replacement Piston 2: 200-7553
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-5978
Wear Plate - Left Hand: 300-5923
Wear Plate - Right Hand: 300-5922
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-6458
Hat
Bolt Kit: 230-8390
Hub
Bolt Kit:
